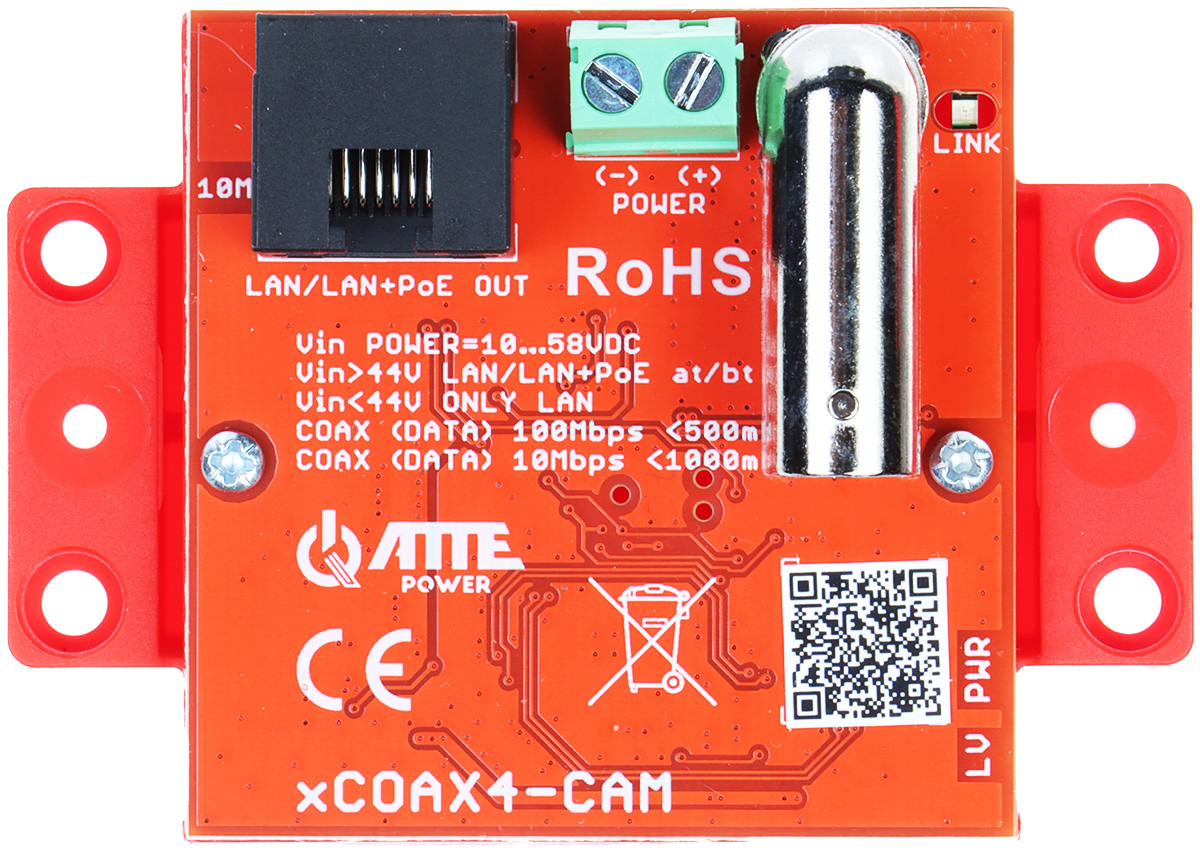

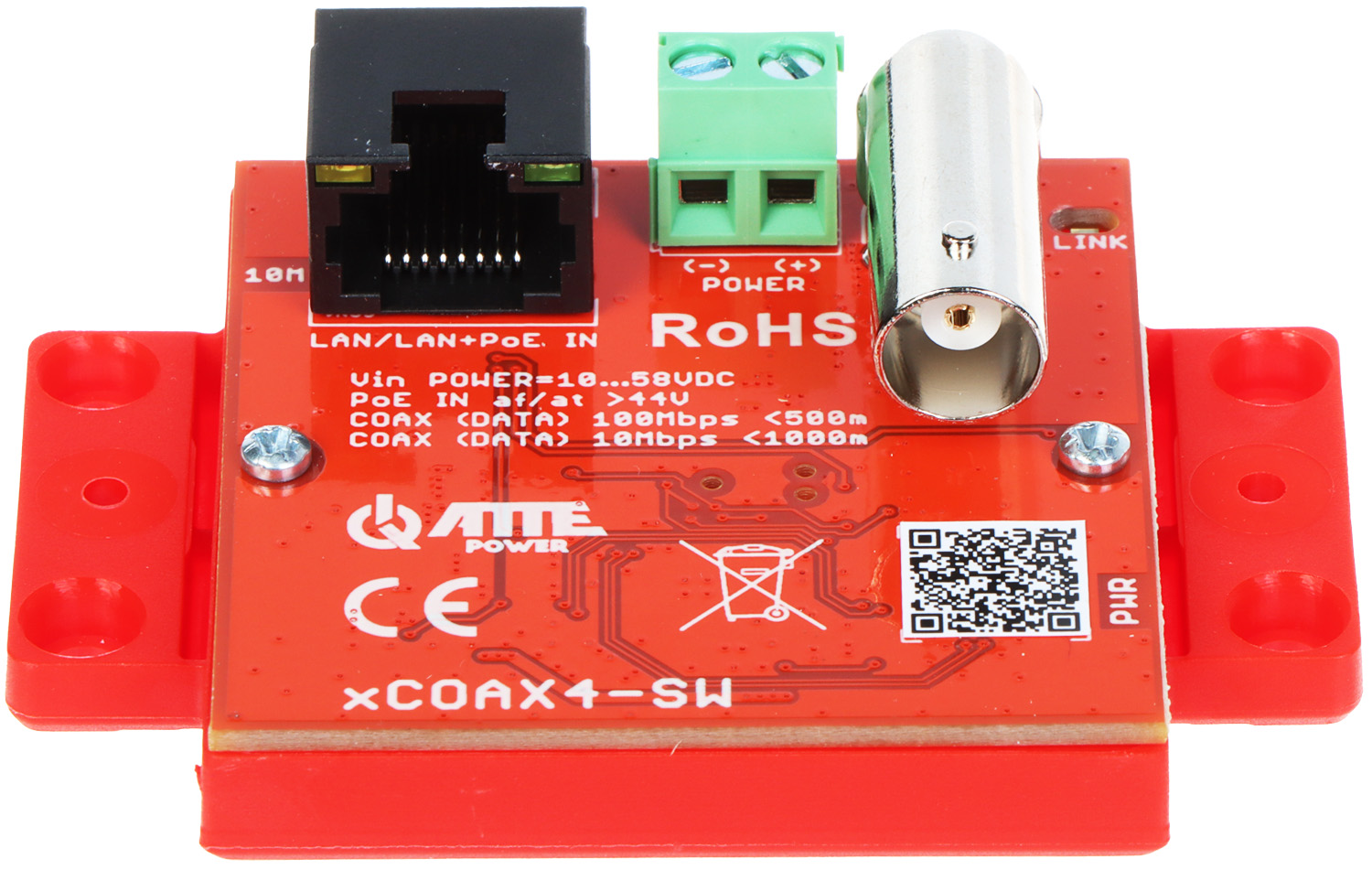

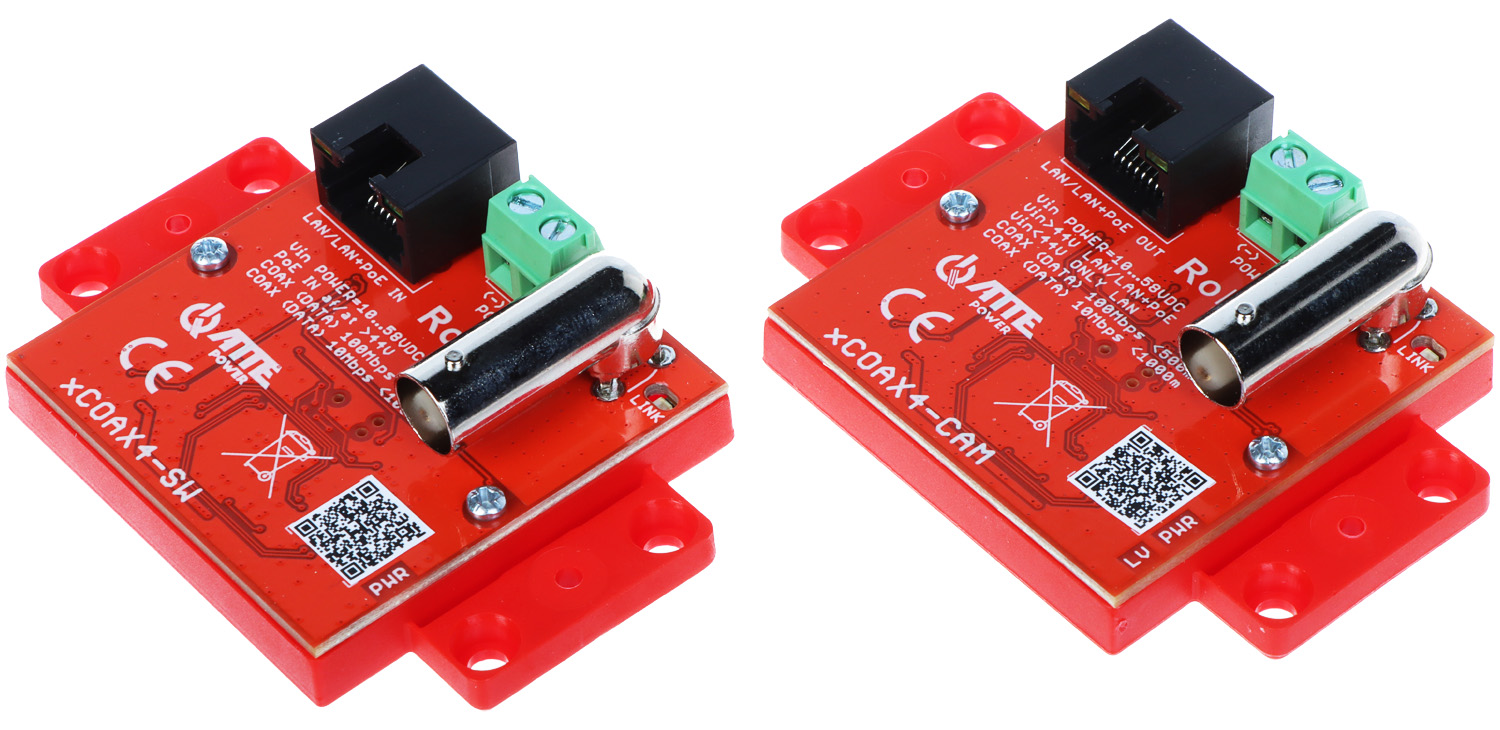

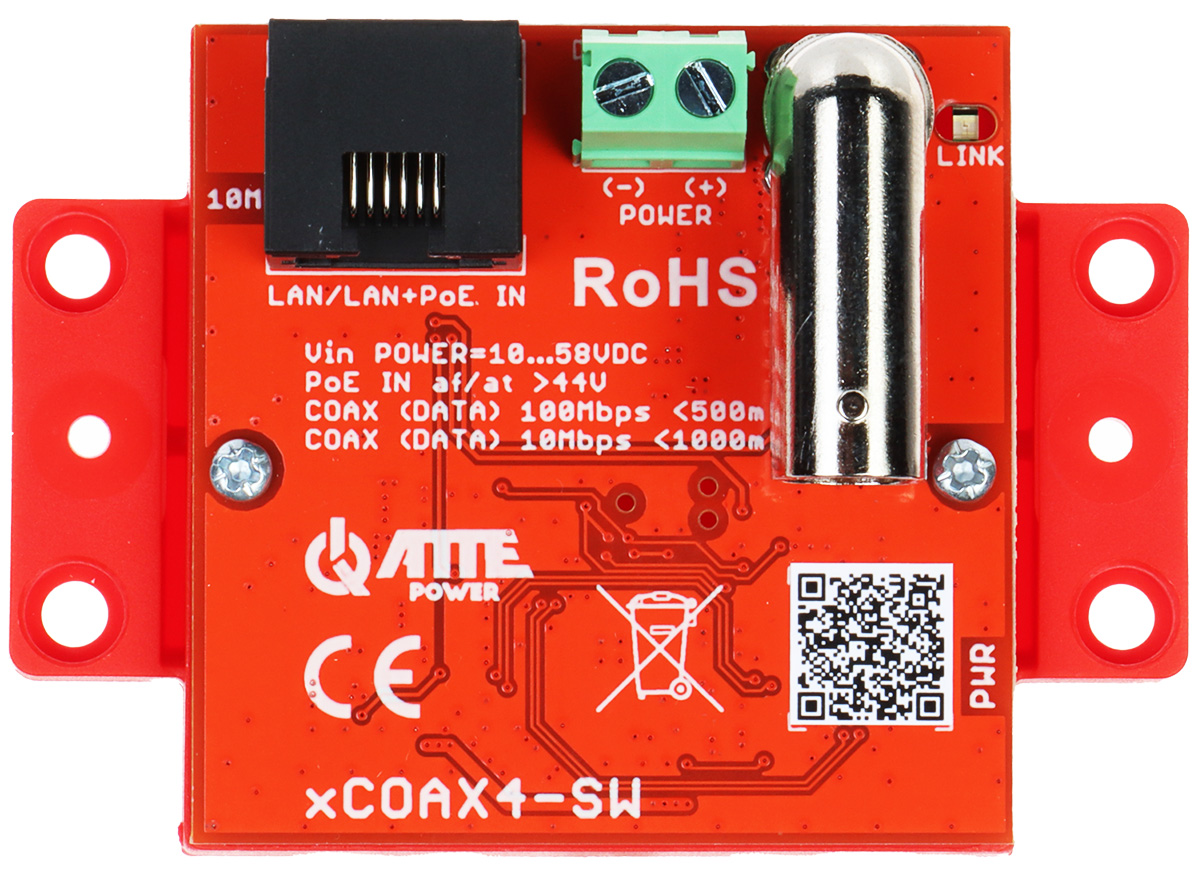

SET OF UTP / COAXIAL CONVERTERS FOR LAN+POE TRANSMISSION XCOAX4-SET 2 PCS SET ATTE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Transmission range: < 1000 m @ Coaxial cable ;
| Connectors: | |
| LAN ports: | 1 pcs RJ45 100 Mbps |
| LAN+PoE port configuration description: | PoE IN - Passive PoE ≤ 30 W, PoE (802.3at) ≤ 30 W, PoE (802.3af) ≤ 15 W ("+/-": 1, 2 pins; "+/-": 3, 6 pins) or ("+/-": 4, 5 pins; "+/-": 7, 8 pins) LAN port 10/100Mb or LAN + PoE OUT - PoE (802.3bt) ≤ 60 W, PoE (802.3at) ≤ 30 W, PoE (802.3af) ≤ 15 W |

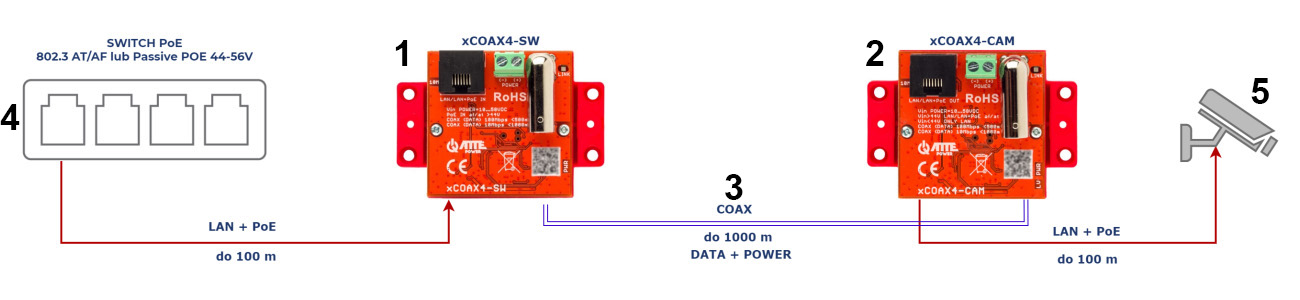

| Transmission range: | < 1000 m @ Coaxial cable < 100 m @ xCOAX4-SW - Switch PoE < 100 m @ xCOAX4-CAM - IP Camera |
| LED indicators: | |
| Protections: | |
| Main features: | |
| Power supply: | xCOAX4-SW : |
| Power consumption: | 1.35 W (total) |
| Housing: | Plastic (PC) |
| "Index of Protection": | IP20 |
| Operation temp: | -25 °C ... 65 °C |
| Weight: | 0.033 kg (single element) |
| Dimensions: | |
| Manufacturer / Brand: | ATTE |
| Guarantee: | 3 years |
Brand:
ATTE
