OBJECT PROTECTION SYSTEM MANAGEMENT SERVER DSS7116D DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

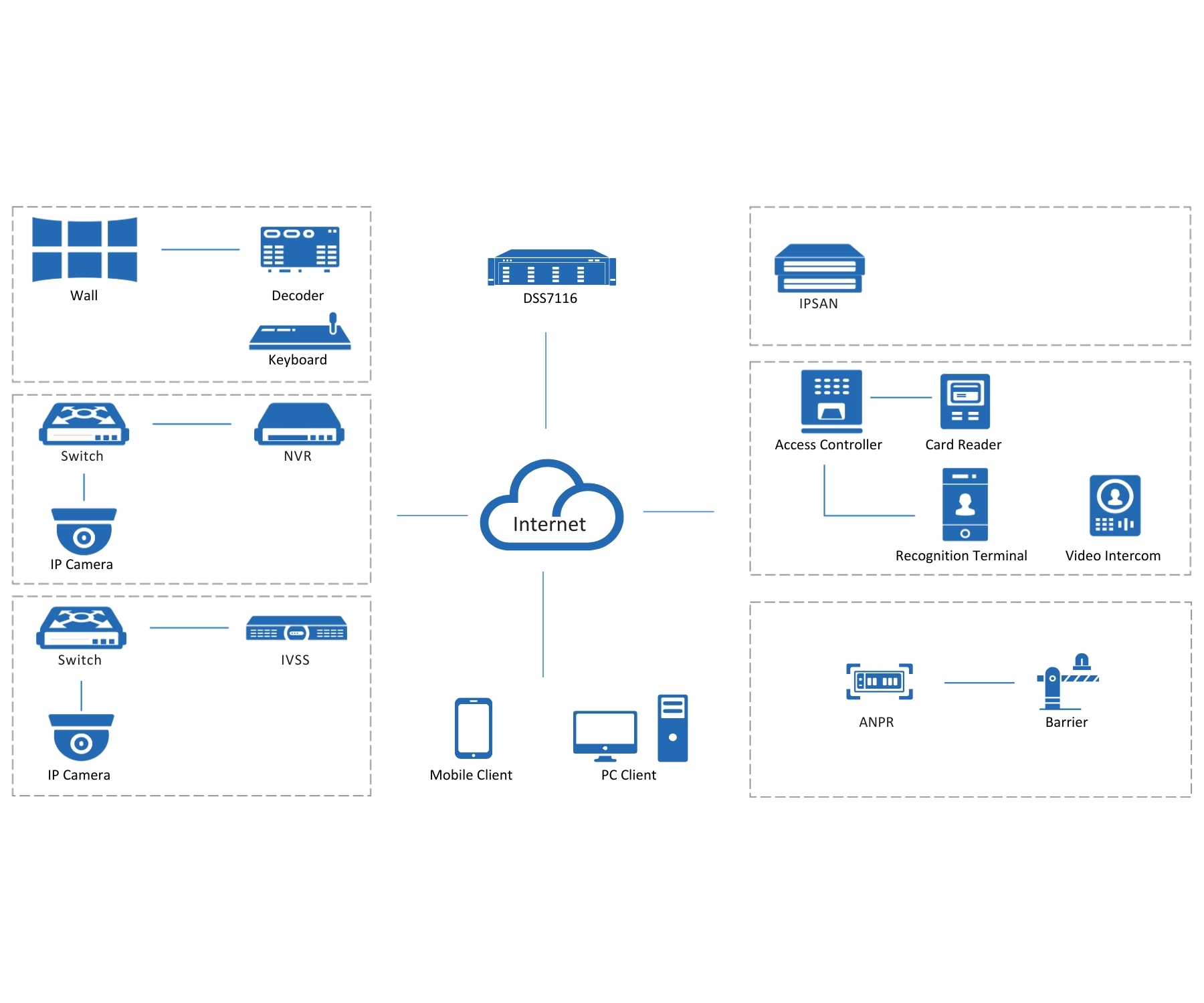

DSS7116D is a Dahua brand video management server designed for IP surveillance systems. It allows centralized management of cameras, users and alarms, and provides live viewing and playback of recordings from a single location. It will prove useful in medium and large CCTV installations requiring centralized system management.;
| Standard: | IP |
| Number of video channels: | max. 2000 |
| Video outputs: | |
| Audio inputs: | 1 pcs Microphone - Jack 3.5 mm socket |
| Audio outputs: | 1 pcs - Jack 3.5 mm socket |
| Supported hard drives: | |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow "Frame by Frame" playback function |
| Network interface: | 4 x 100/1000 Mbps |
| Bitrate: | max. 600 Mbps |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in max. 200 on-line users |
| Mobile phones support: |  |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Alarm inputs / outputs: | 4 / 2 |
| PTZ control: | |
| RS-485: |  |
| RS-232: | |
| Motion Detection: | |
| Intelligent Image Analysis: | |
| Mouse support: | |
| ANPR: | max. 64 cameras |
| Face recognition: | max. 20 cameras |
| Main features: | |
| Weight: | 19.1 kg |

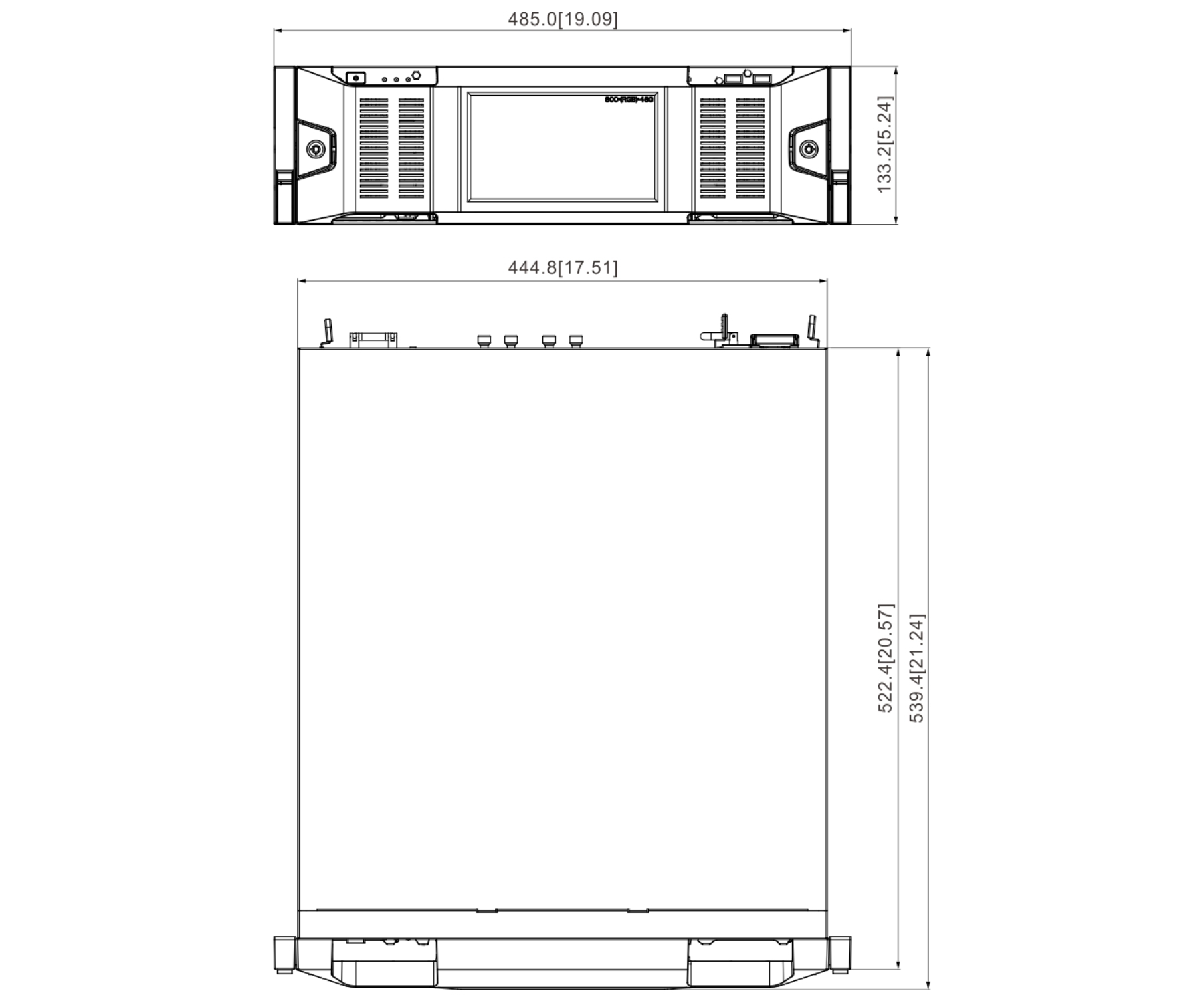

| Dimensions: | 445 x 522 x 133 mm - RACK 19", 3U |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
Brand:
Dahua
