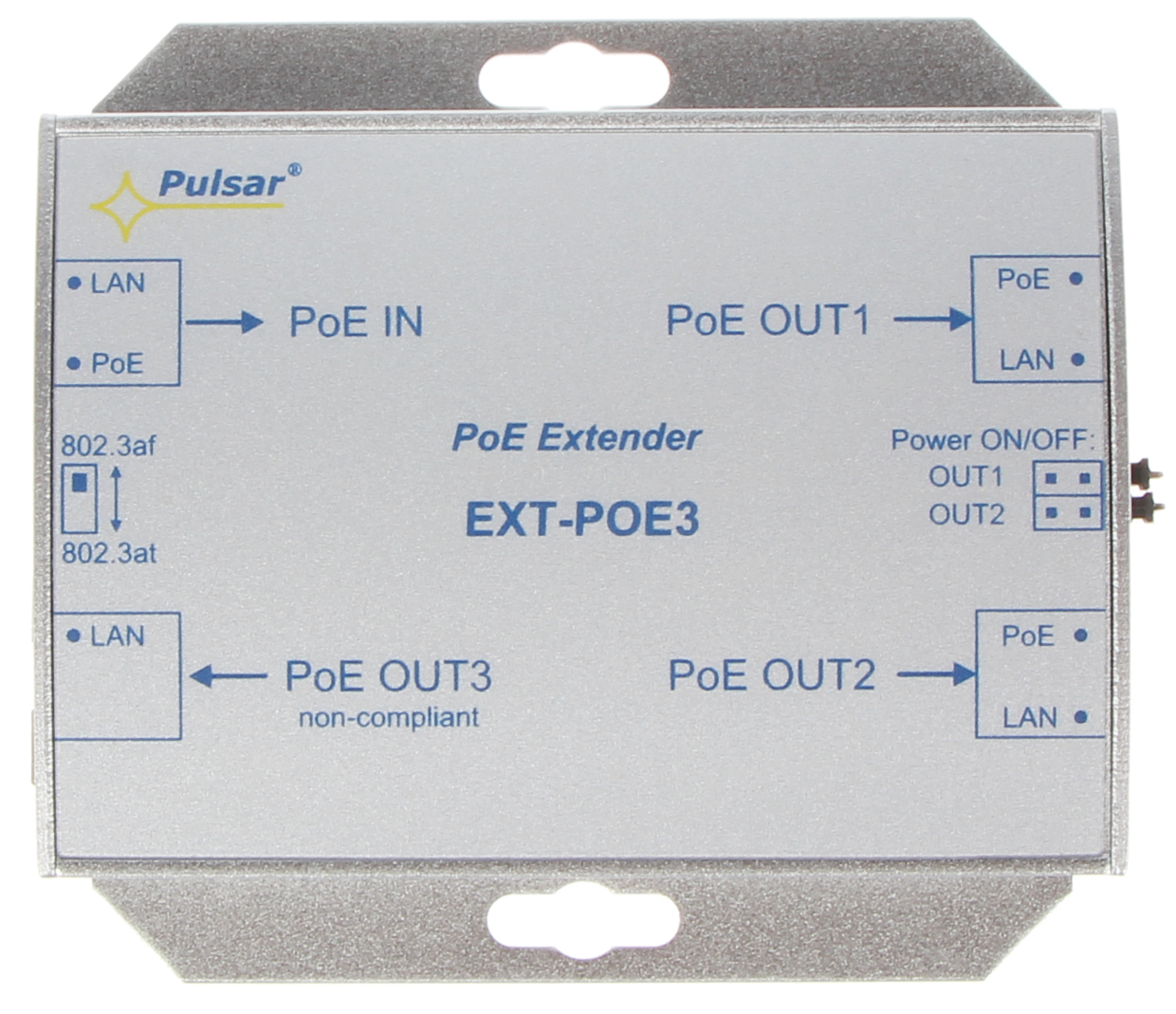

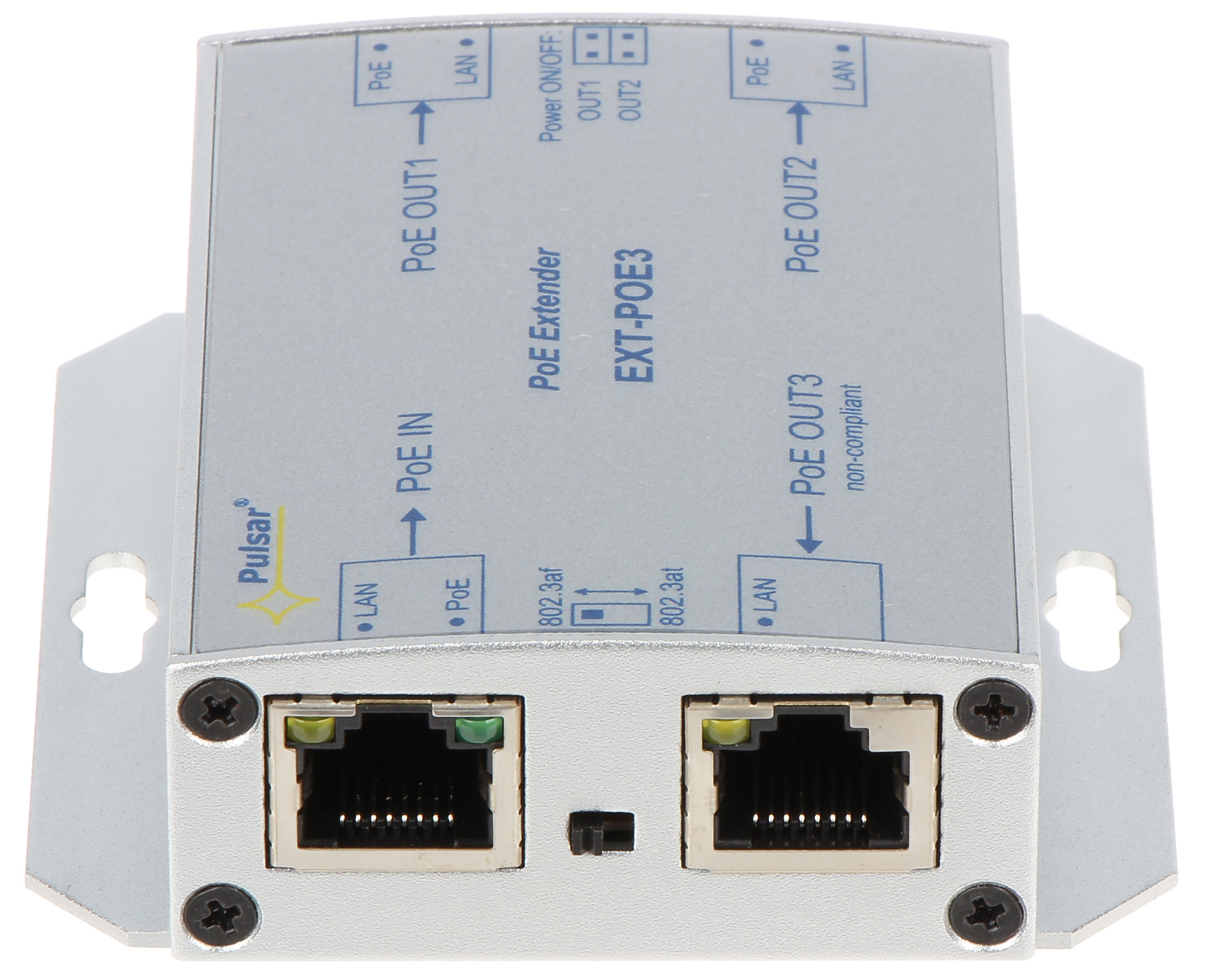

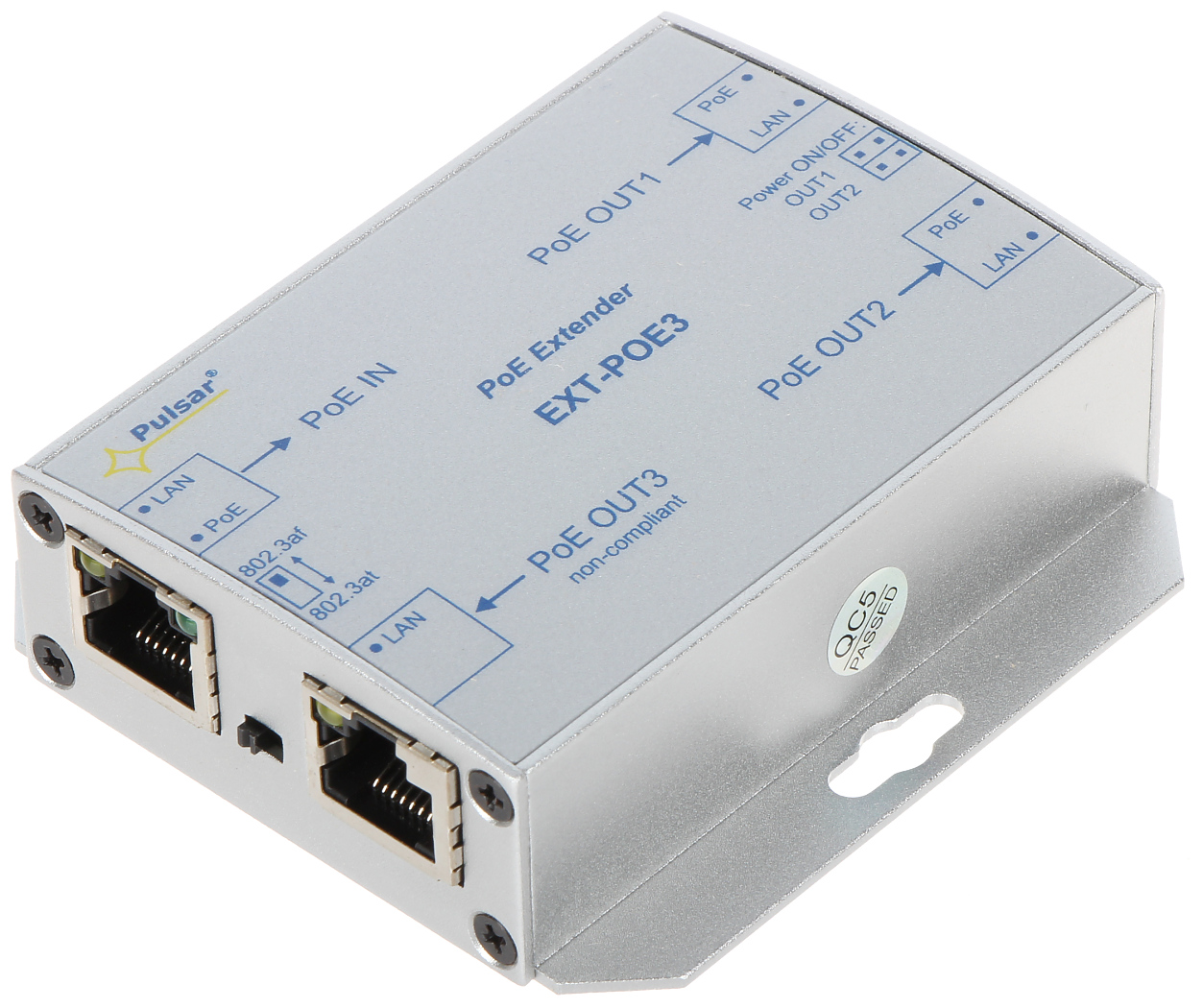

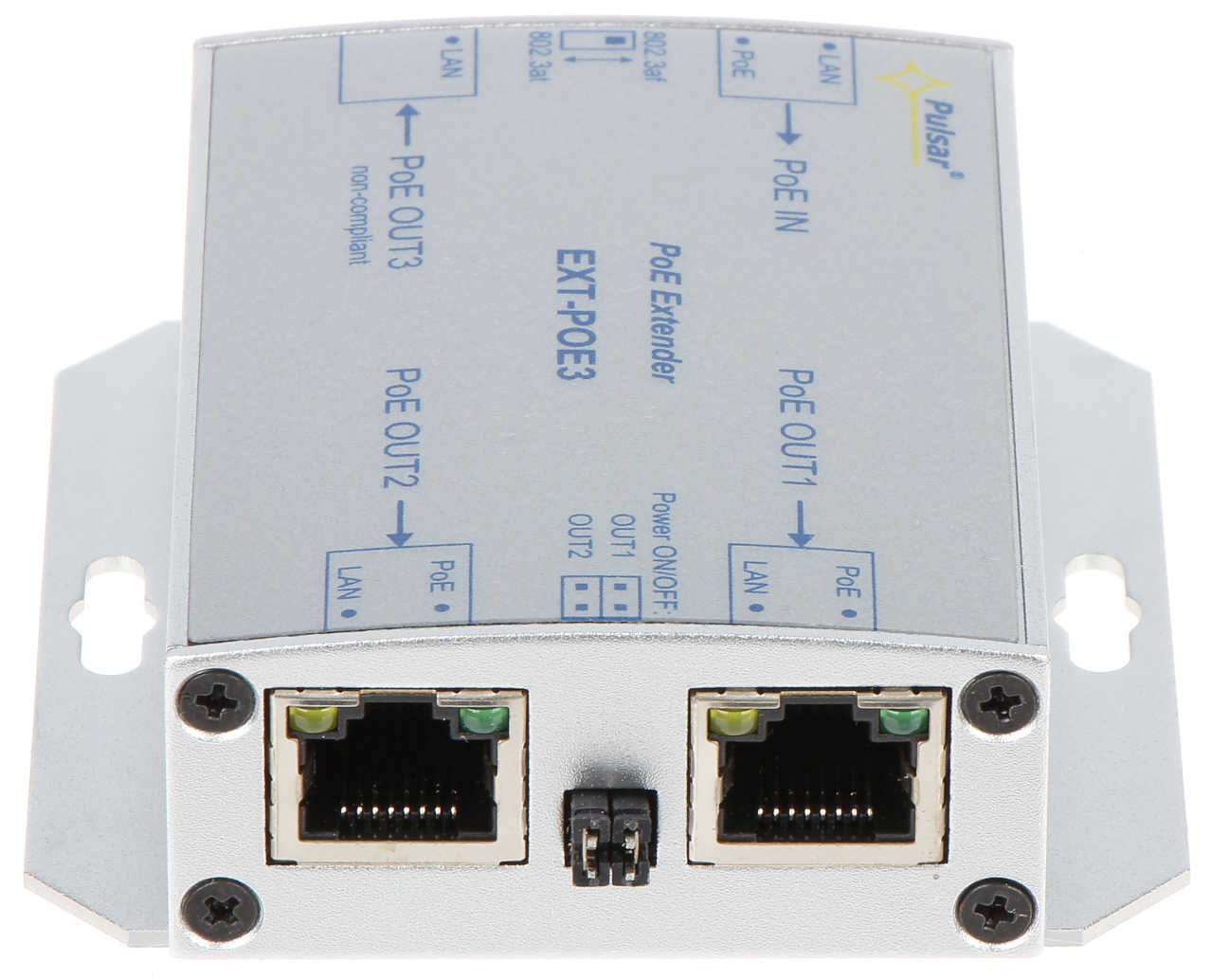

EXTENDER ETHERNET+PoE EXT-POE3 PULSAR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

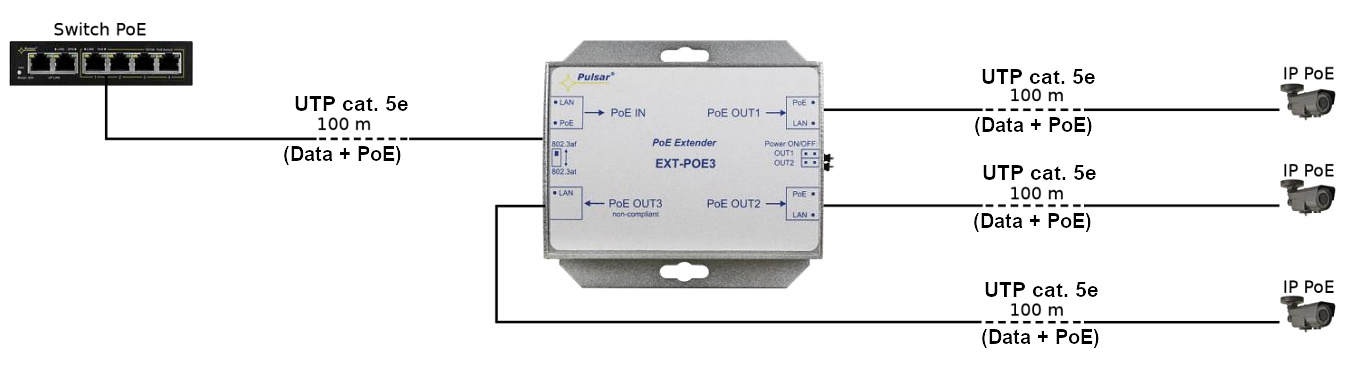

The EXT-POE3 extender is a device designed to increase the distance of PoE power supply and Ethernet data using the UTP cat. 5/5e twisted pair cable for another 100 m; Number of inputs: 1 pcs ; Number of outputs: 3 pcs ; Power supply: Compliance with PoE (802.3af/at) ;
| Number of inputs: | 1 pcs - RJ-45 socket |
| Number of outputs: | 3 pcs - RJ-45 socket |
| Power supply: | Compliance with PoE (802.3af/at) : 44 V ... 57 V DC |
| Output voltage: | Compatible with the power supply voltage |
| Output current: | Total max. 0.6 A |
| Input power pairs PoE IN: | 1/2 (+) 3/6(-) 4/5 (+) 7/8 (-) |
| Output power pairs PoE OUT1/2: | 4/5 (+) 7/8 (-) - Passive PoE |
| Ethernet interface: | 10/100 Mb/s |
| Protections: | |
| Operation state indication: | LED diodes |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.11 kg |
| Dimensions: | 87 x 77 x 25 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
