Sensor: 1/1.8 " Progressive Scan CMOS ; Resolution: 2688 × 1520 ; Range of IR illumination: 80 m ; White light LED illuminator range: 80 m ; Audio: Bi-directional audio streaming support ; RS-485 interface; Main features: Power output : 12 V DC ; Power supply: PoE (802.3at), 12 V DC ; Vandal-proof: IK10 ;
| Standard: | IP |
| Sensor: | 1/1.8 " Progressive Scan CMOS |
| Resolution: | 2688 × 1520 - 4 Mpx |
| Lens: | 2.8 mm |
| View angle: | 104 ° |
| Range of IR illumination: | 80 m |
| White light LED illuminator range: | 80 m |
| Compression: | H.265+ / H.264+ / H.265 / H.264 |
| Main stream frame rate: | 25 fps - 4 Mpx |
| Network interface: | 10/100 Mb/s (RJ-45) |
| ONVIF: | ![]() |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |

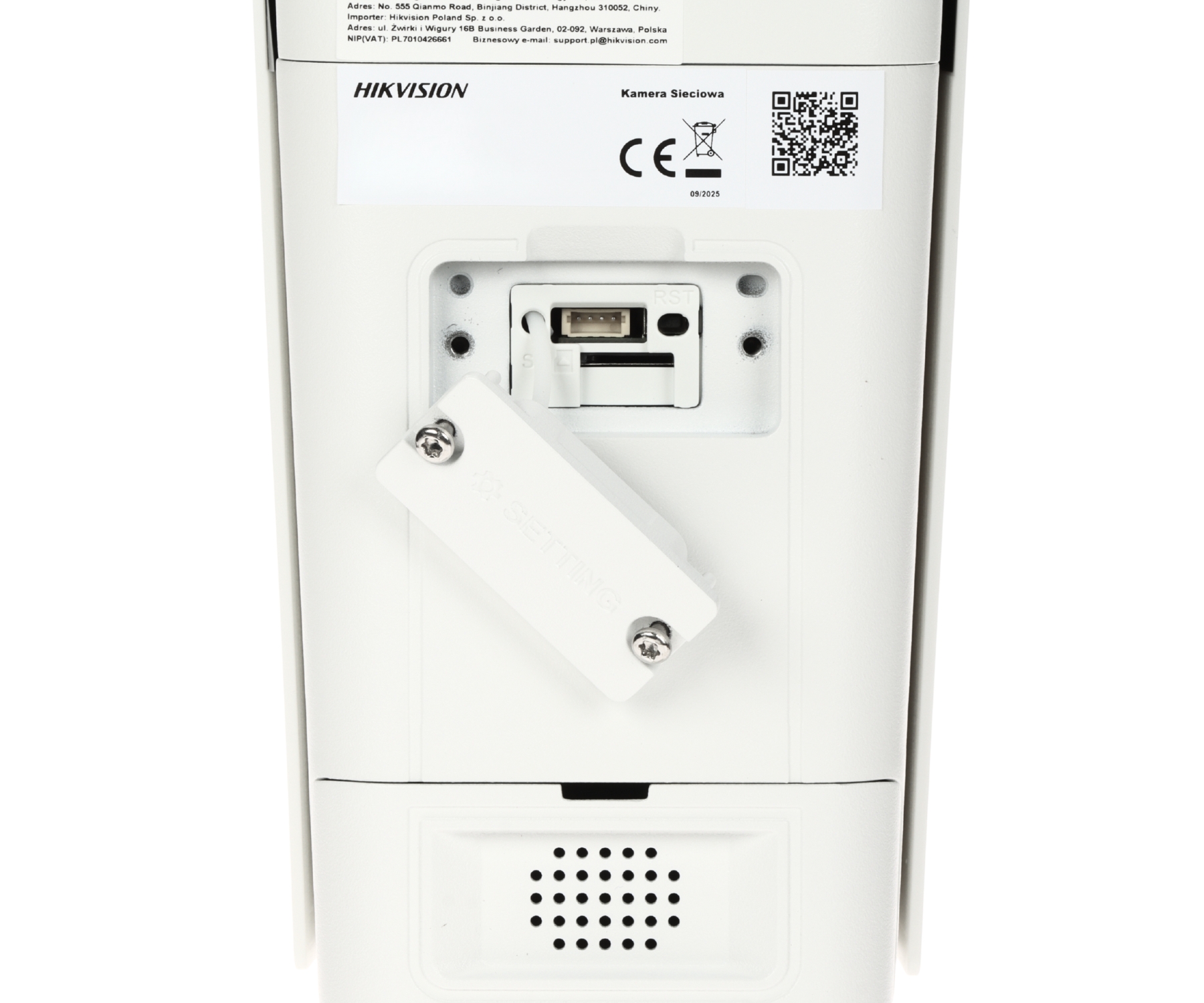

| Memory card slot: | Micro SD card support up to 1TB |
| Alarm inputs / outputs: | 1 / 1 |
| Audio: | |
| RS-485 interface: | ![]() |
| Wiegand interface: | ![]() |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| Main features: | |
| Intelligent Image Analysis: | |
| Power supply: | |
| Power consumption: | |
| Housing: | Bullet, Aluminum alloy |
| Color: | White + Black |
| "Index of Protection": | IP67 |
| Vandal-proof: | IK10 |
| Operation temp: | -30 °C ... 65 °C |
| Weight: | 1.370 kg |
| Dimensions: | 323.4 x 114.5 x 114.5 mm |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 311333373 |
| Guarantee: | 3 years |
