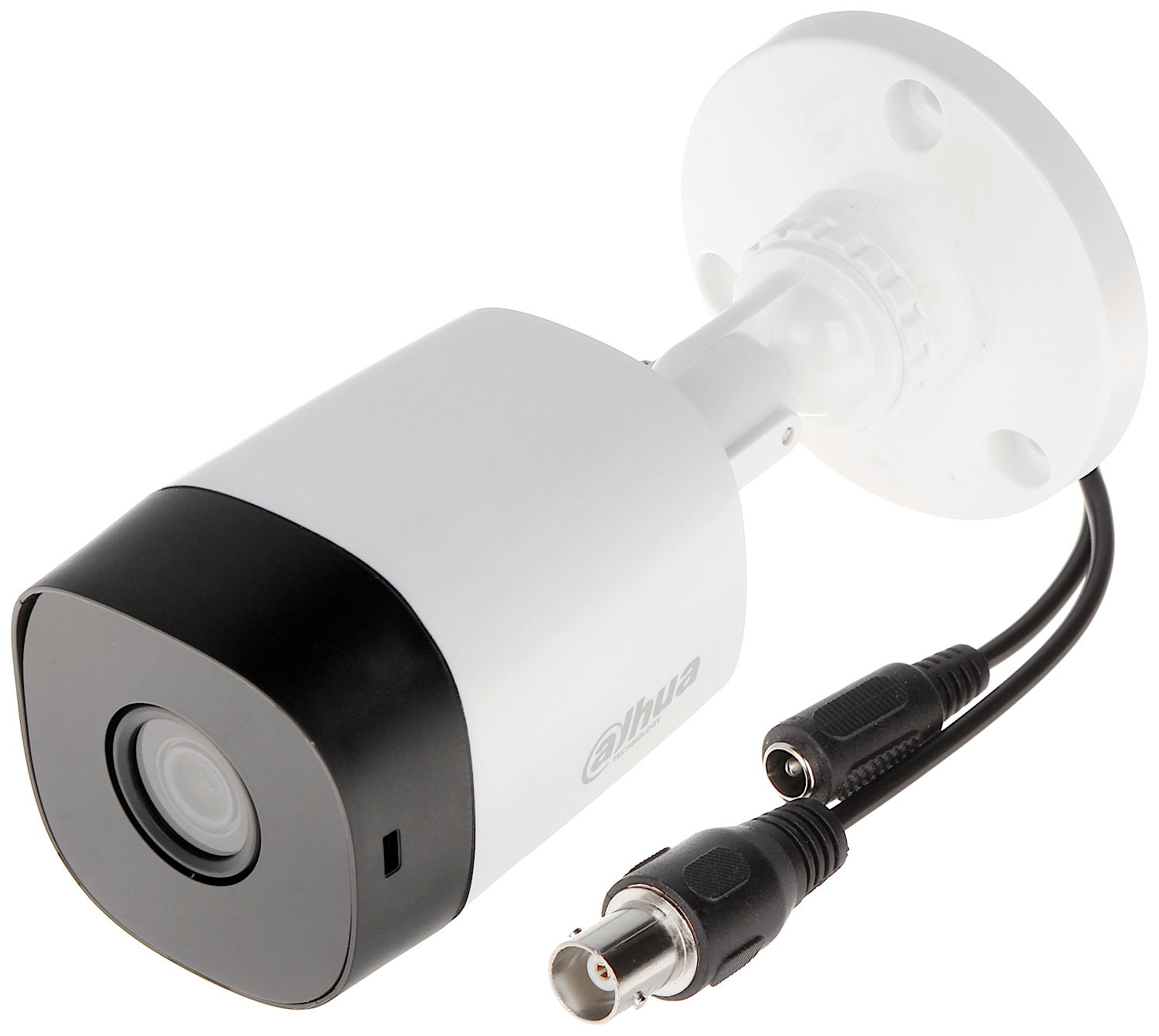

AHD, HD-CVI, HD-TVI, PAL CAMERA HAC-B1A51-0360B 5 Mpx 3.6 mm DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Sensor: 1/2.7 " Progressive Scan CMOS ; Matrix size: 5 Mpx ; Resolution: HD-CVI : 2880 x 1620, 2560 x 1440, 1920 x 1080 ; AHD / HD-TVI : 2560 x 1440 ; View angle: 88 ° ; Range of IR illumination: 20 m ; Power supply: 12 V DC ;
| Standard: | AHD, HD-CVI, HD-TVI, PAL |
| Sensor: | 1/2.7 " Progressive Scan CMOS |
| Matrix size: | 5 Mpx |
| Resolution: | 2880 x 1620 - 4.7 Mpx , 2560 x 1440 - 3.7 Mpx , 1920 x 1080 - 1080p ; 2560 x 1440 - 3.7 Mpx 960 x 576 - 960H |
| Lens: | 3.6 mm |
| View angle: | |

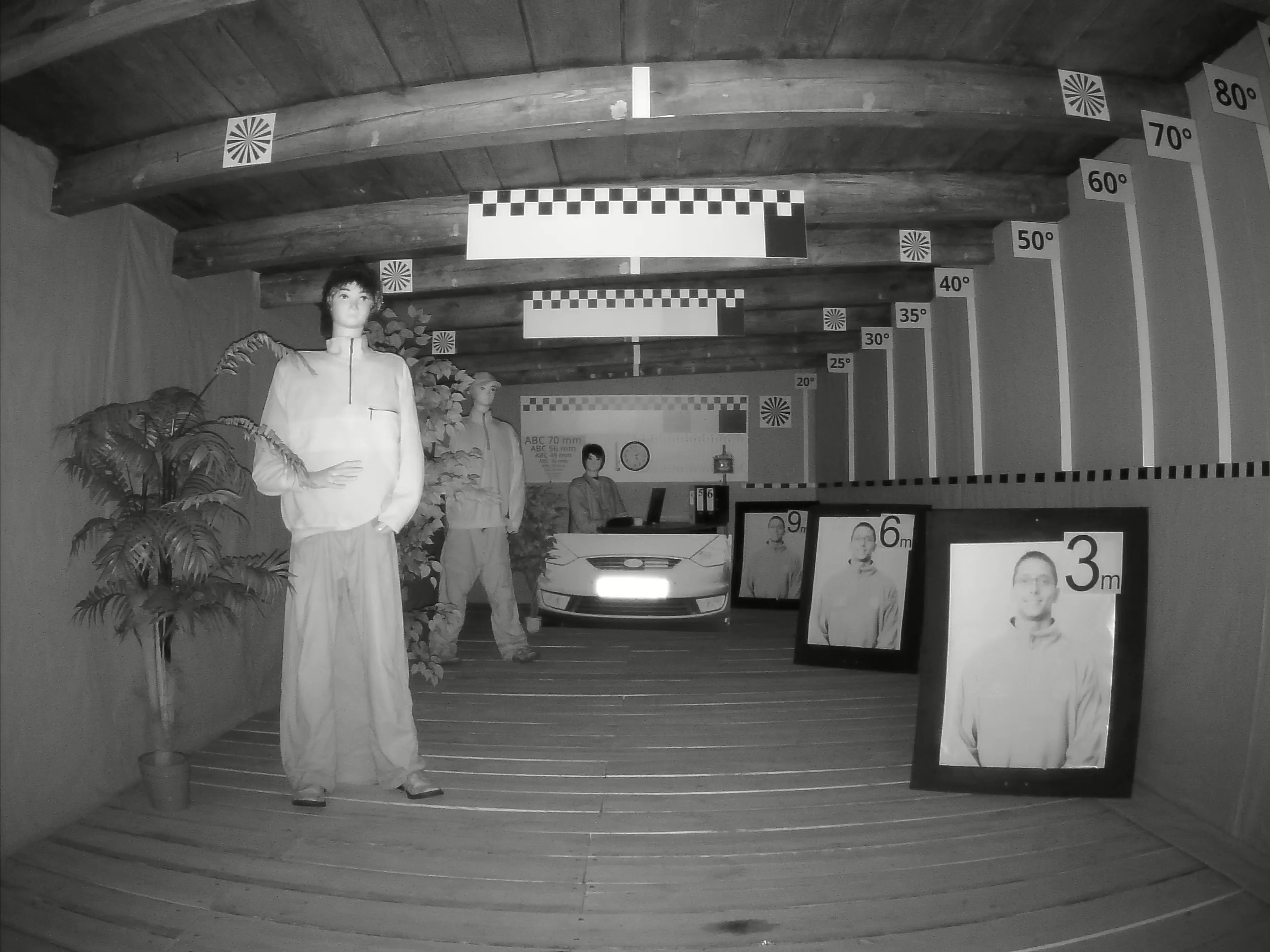

| Range of IR illumination: | 20 m |
| IR illuminator power adjustment: | Automatic |
| Video output: | AHD / HD-CVI / HD-TVI / PAL, 1 Vpp / 75 Ω |
| S/N ratio: | > 65 dB |
| OSD menu: | OSD menu available via DAHUA recorder |
| Main features: | |
| Power supply: | 12 V DC / 310 mA |
| Power consumption: | ≤ 3.7 W |

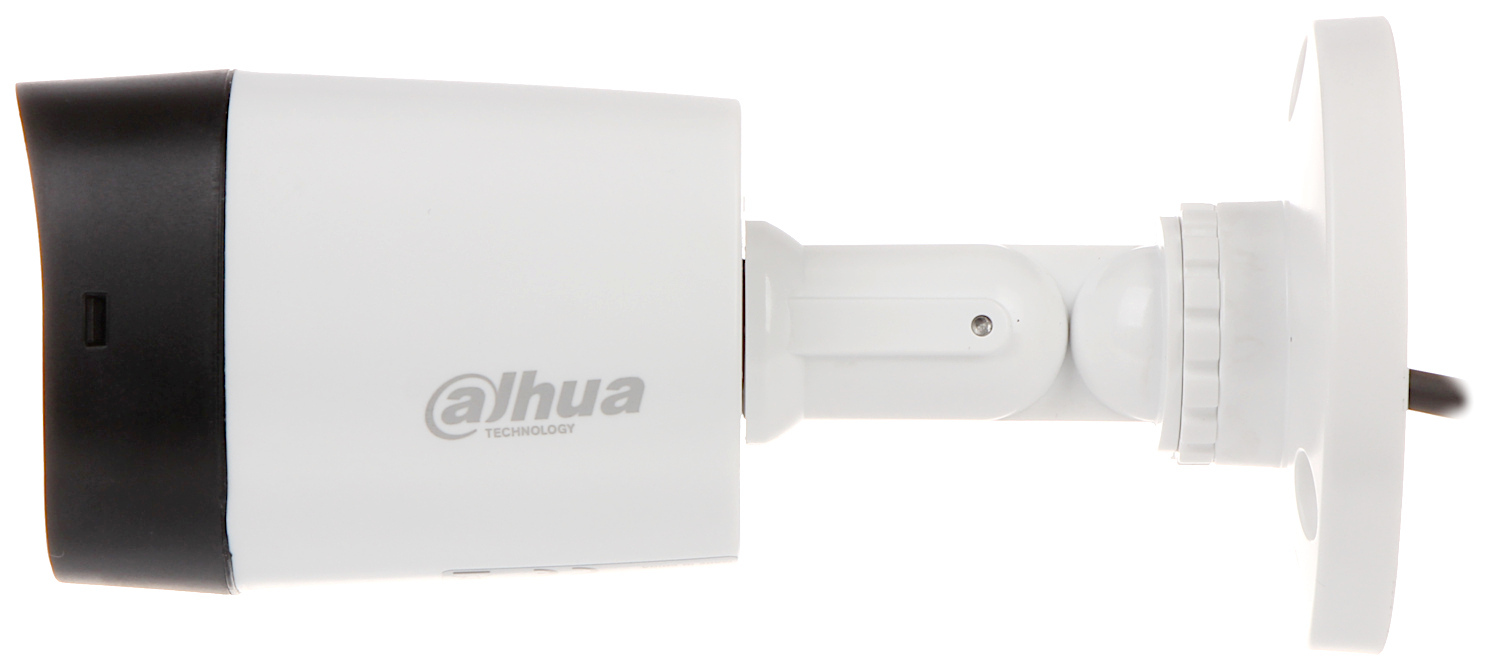

| Housing: | Compact, Plastic |
| Color: | White + Black |
| "Index of Protection": | IP67 |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 0.15 kg |

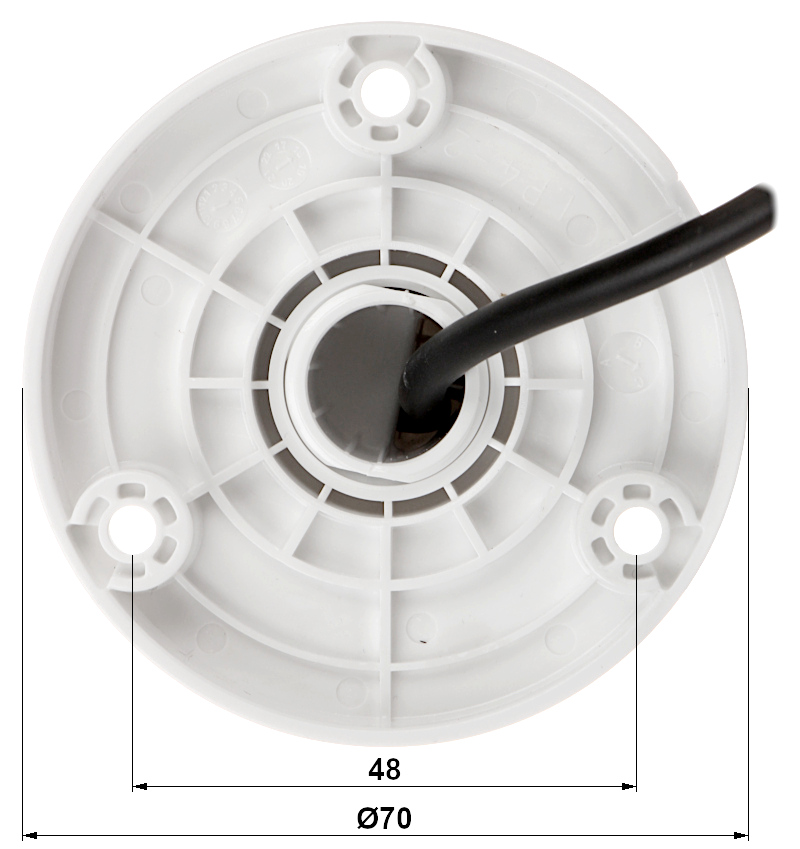

| Dimensions: | 149 x 70 x 70 mm |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
