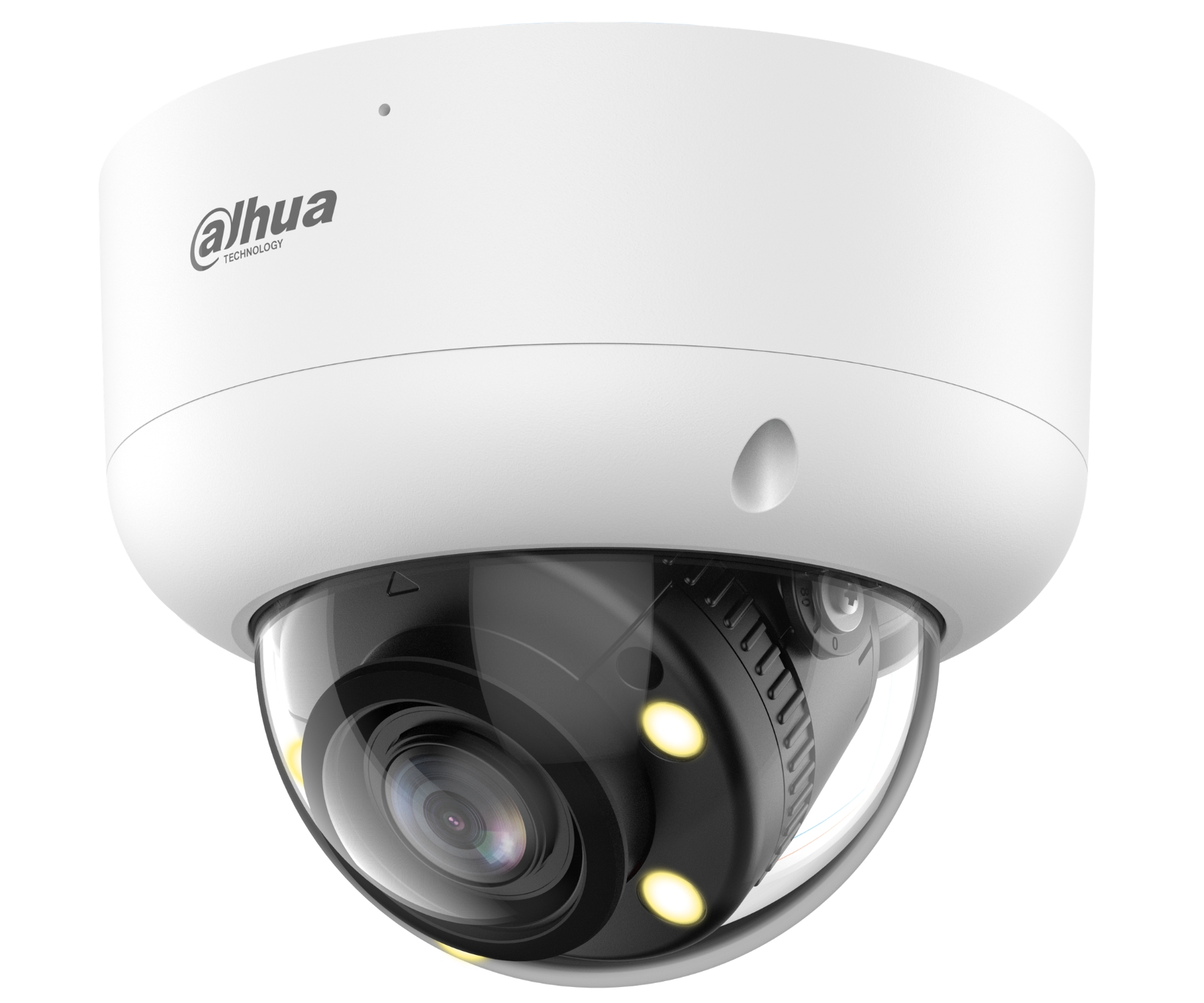

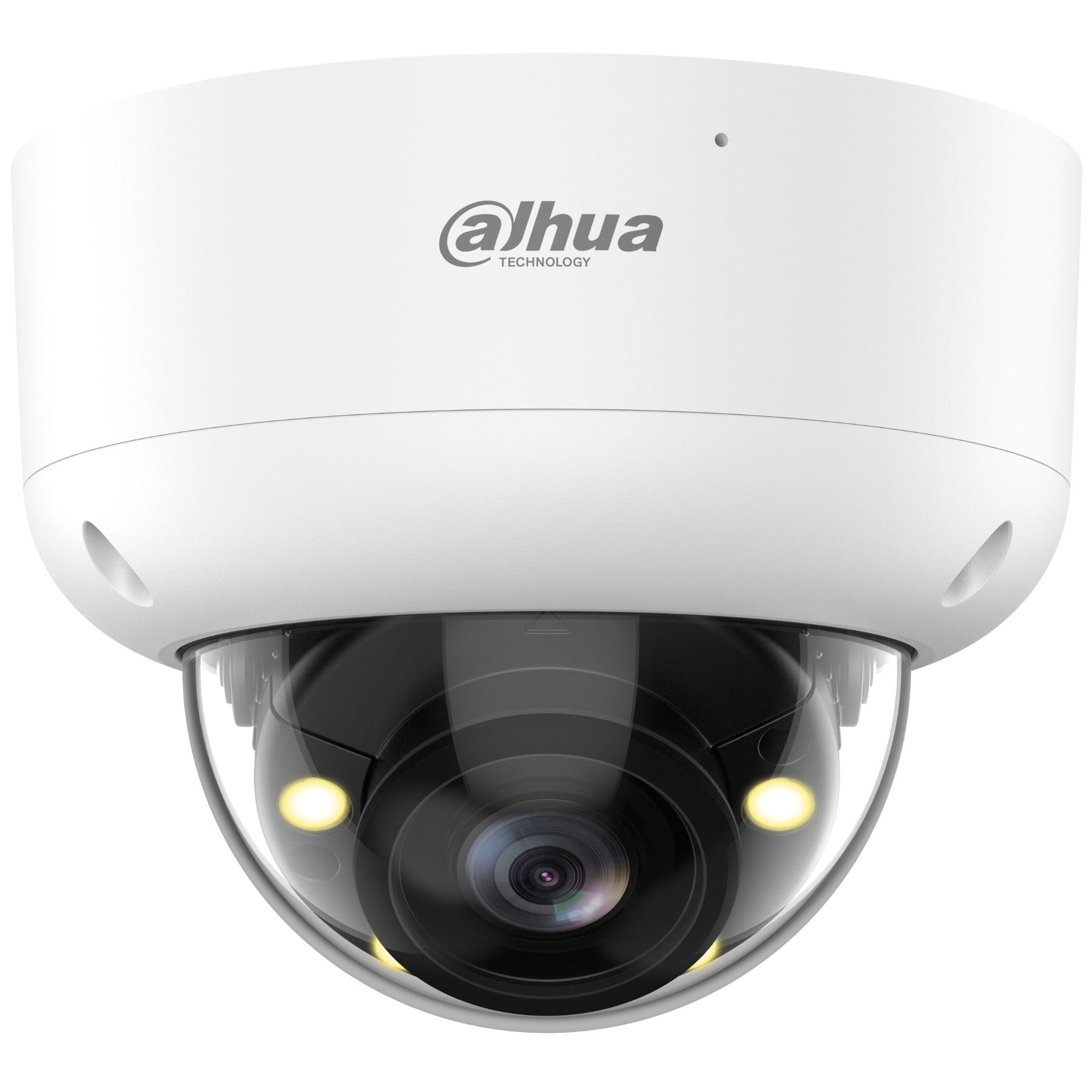

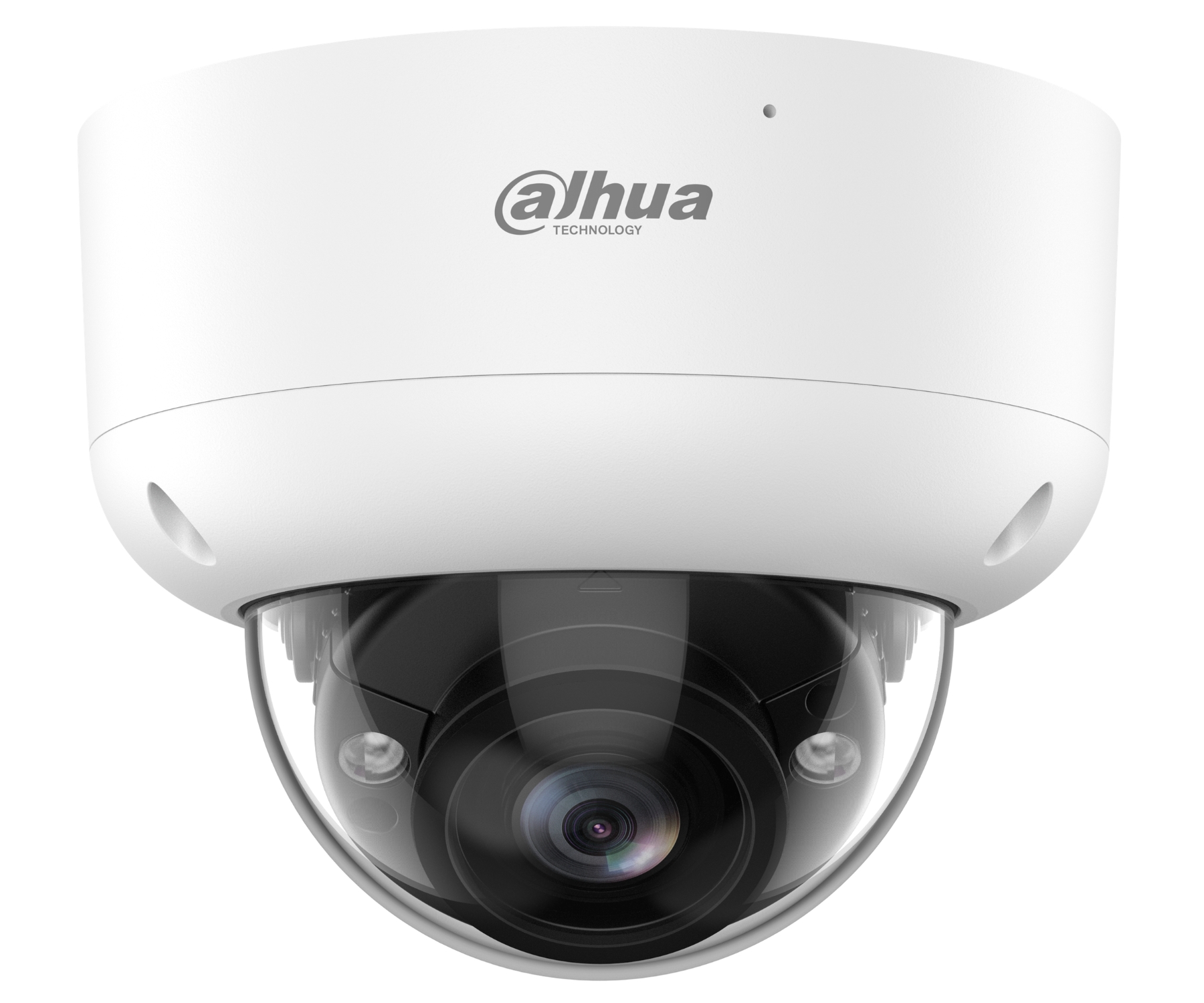

AHD, HD-CVI, HD-TVI, PAL VANDALPROOF CAMERA HAC-HDBW1500RA-Z-IL-A-27135-S3-DIP - 5 Mpx 2.7 ... 13.5 mm - MOTOZOOM DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Sensor: Progressive Scan CMOS ; Matrix size: 5 Mpx ; Resolution: 2880 x 1620, 2560 x 1440 1920 x 1080 ; View angle: 32.7 ° ... 111.8 ° ; Range of IR illumination: 80 m ; Audio: Microphone built-in ; Power supply: 12 V DC ;
| Standard: | AHD / HD-CVI / HD-TVI / CVBS |
| Sensor: | Progressive Scan CMOS |
| Matrix size: | 5 Mpx |
| Resolution: | 2880 x 1620 - 5 Mpx @ CVI 25 fps , 2880 x 1620 - 5 Mpx @ TVI 20 fps , 2560 x 1440 - 4 Mpx @ AHD 25 fps , 1920 x 1080 - 1080p @ 25 fps , 960 x 576 - 960H @ CVBS |
| Lens: | 2.7 ... 13.5 mm - Motozoom |
| View angle: | 32.7 ° ... 111.8 ° |
| S/N ratio: | > 65 dB |
| Range of IR illumination: | 80 m |
| White light LED illuminator range: | 60 m |

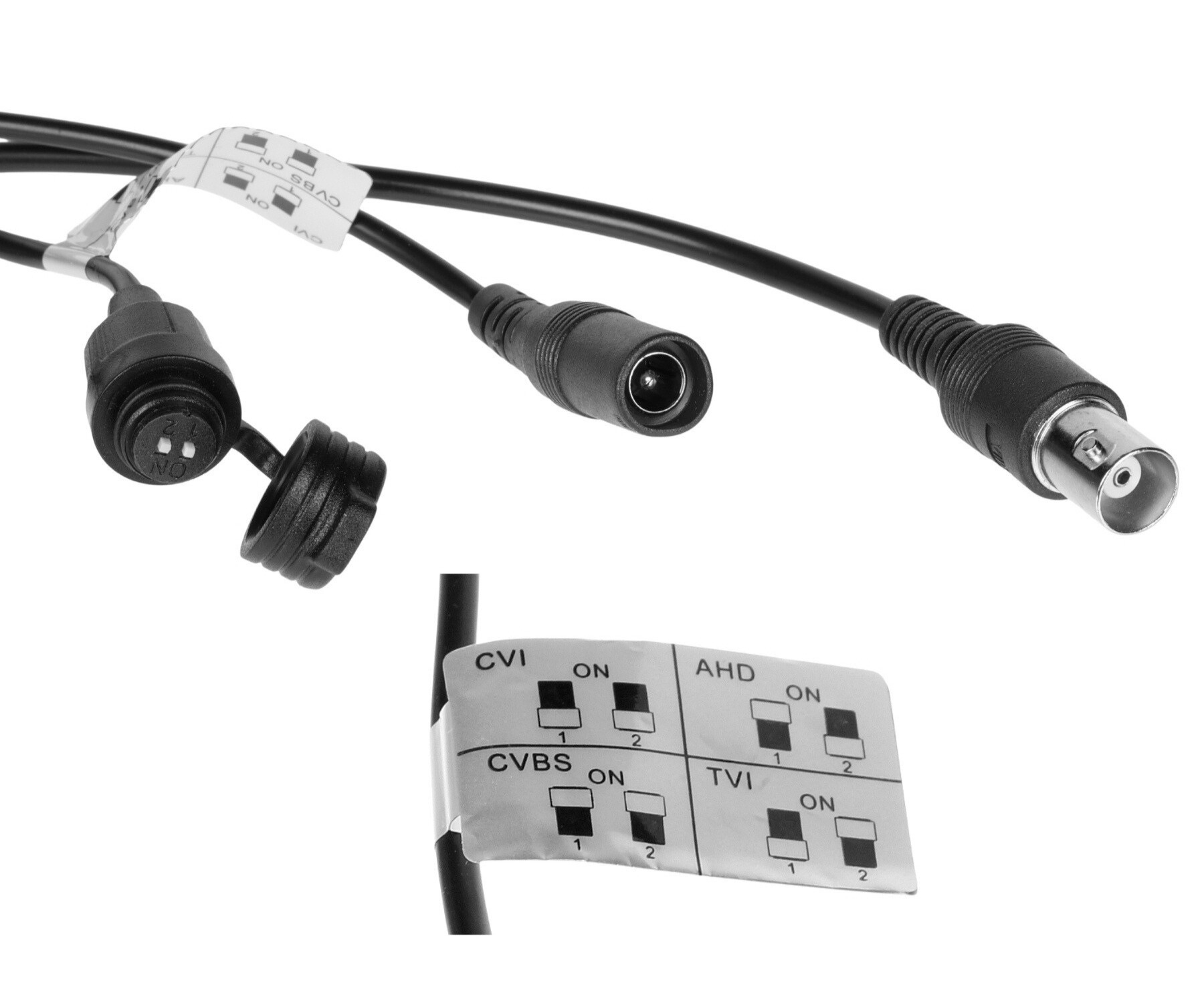

| Video output: | AHD / HD-CVI / HD-TVI / PAL - 1 Vpp / 75 Ω Set with DIP switches |
| Audio: | Microphone built-in - HD-CVI / HD-TVI only |
| Main features: | |
| OSD menu: |  |
| Power supply: | 12 V DC / 620 mA |
| Power consumption: | ≤ 7.4 W |
| Housing: | Dome, Aluminum |
| Color: | White |
| "Index of Protection": | IP67 |
| Vandal-proof: | IK10 |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.62 kg |

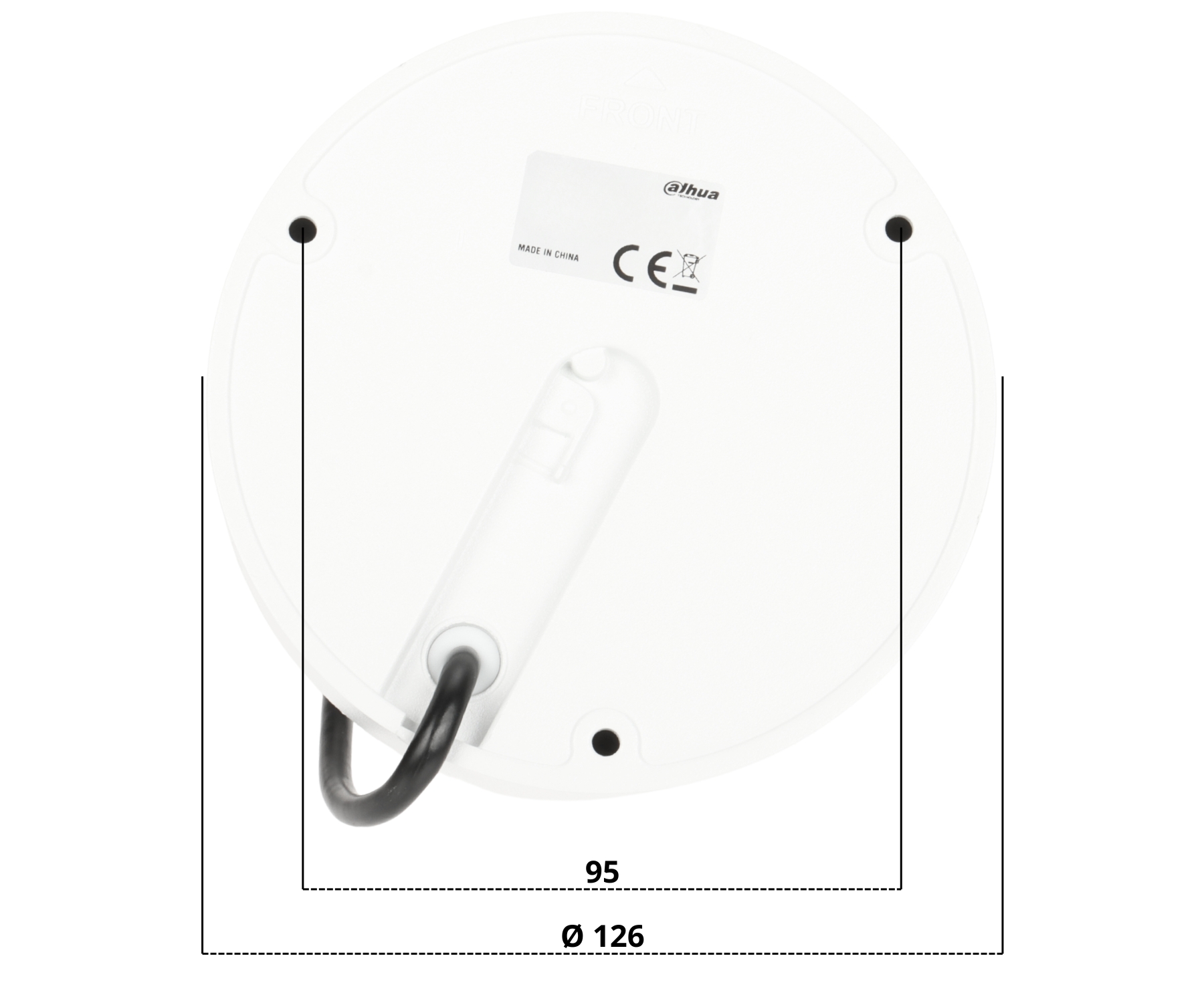

| Dimensions: | Ø 126 x 100 mm |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
