AHD, HD-CVI, HD-TVI, CVBS, IP DVR XVR1B08-I/T 8 CHANNELS DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Audio inputs: 1 pcs CINCH, 8 - Audio support via coaxial cable, HD-CVI only ; Image compression method: AI Coding / H.265+ ; Image records resolutions: AHD : 1080N, HD-CVI : 1080N, HD-TVI : 1080N, CVBS : 960H, IP : max. 6 Mpx ; Supported hard drives: 1 x 6 TB SATA ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, IP |

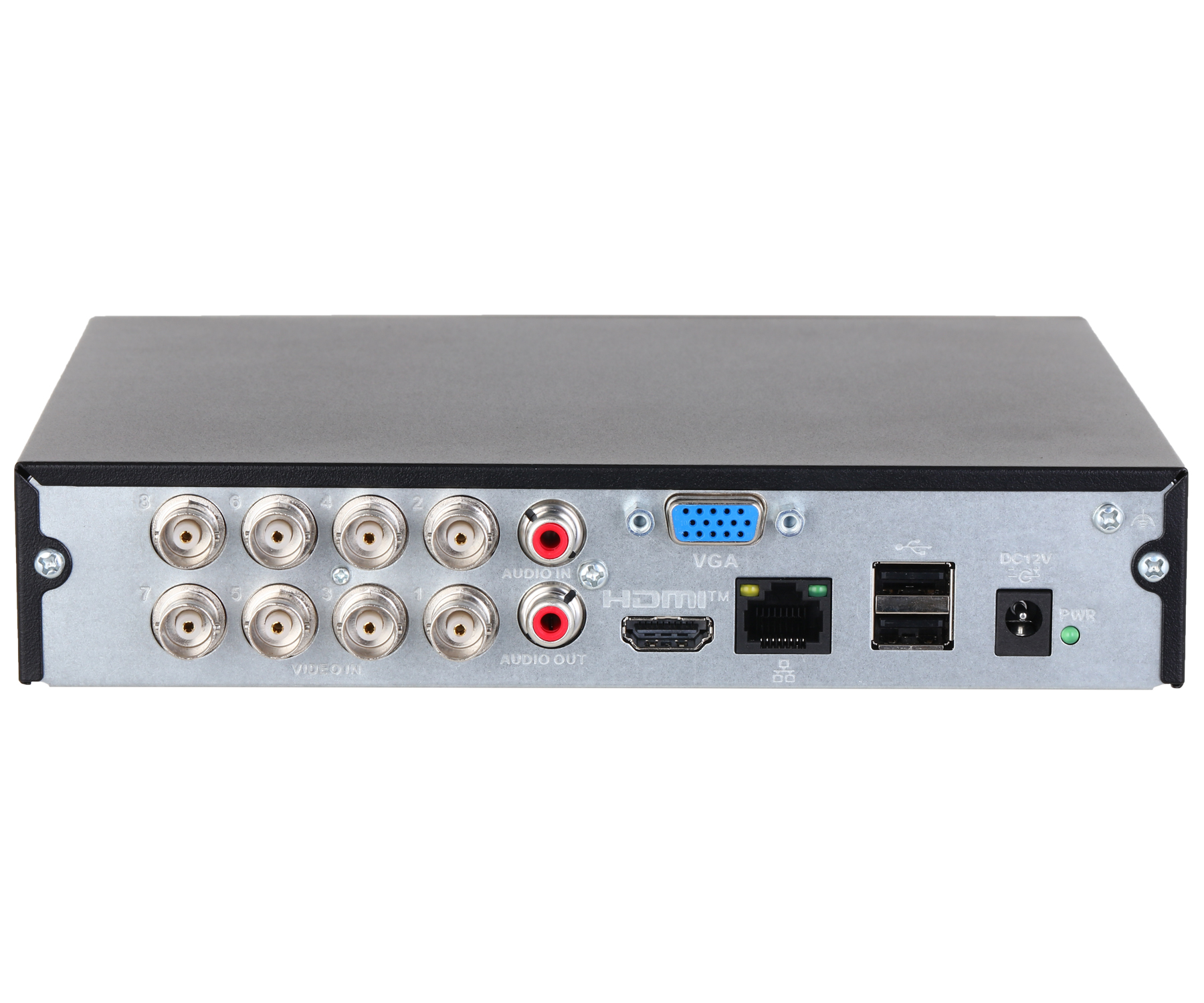

| Video inputs: | 8 pcs BNC - AHD / HD-CVI / HD-TVI / CVBS |
| Video outputs: | 1 pcs HDMI 1 pcs VGA |
| Audio inputs: | |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Image records resolutions: | |
| Recording speed adjustment: | 6 Mpx IP @ 1 ... 25 fps 1080N @ 1 ... 25 fps - 1 channel 1080N @ 1 ... 15 fps - 2 ... 8 channel 720p @ 1 ... 25 fps 1 channel 720p @ 1 ... 15 fps 2 ... 8 channel 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 8 x AHD / HD-CVI / HD-TVI / CVBS / IP + 2 x IP |
| Recording modes: | Manual, Motion Detection, Schedule |
| Supported hard drives: | 1 x 6 TB SATA |
| External storage devices backup: | Save single frames and whole records from DVR drive to the USB drive |
| Searching and playback the records: | Records searching: by time + timeline with record type. Playback: forward, fast, slow, step Advanced searching (to the one second accuracy) |
| Network functions: | Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters |
| USB: | 2 x USB 2.0 |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) |
| Alarm inputs / outputs: |  |
| PTZ control: | IP Speed Dome Cameras Control compatible with coax PTZ HD-CVI |
| Motion Detection: | Split the screen into zones : 22 x 18 motion zones |
| Main features: | SMD PLUS - searching for an object classified as: human, motor vehicle, non-motor vehicle |
| Mouse support: |  |
| IR remote controller in the set: | |

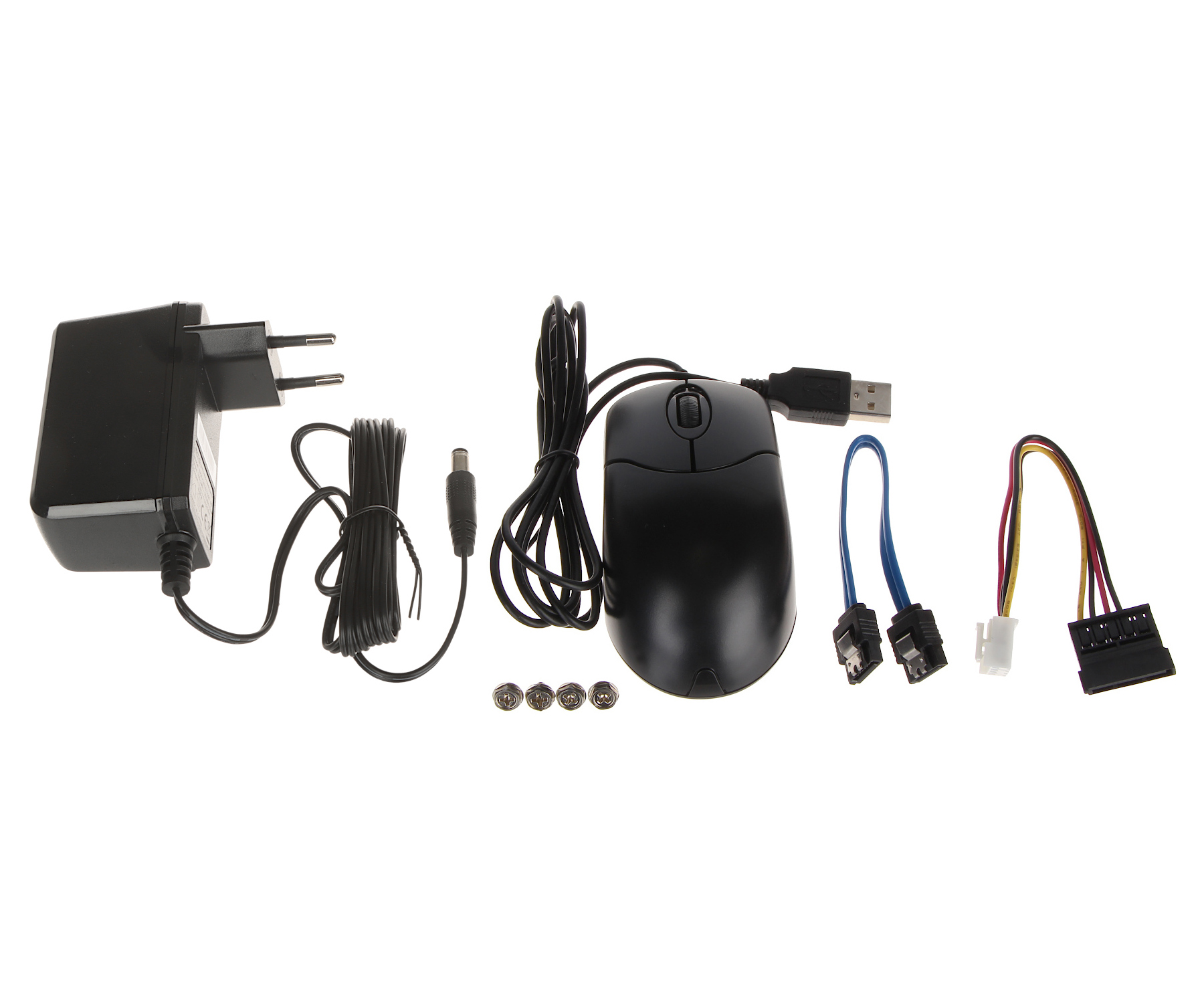

| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Color: | Black |
| Weight: | 0.59 kg |

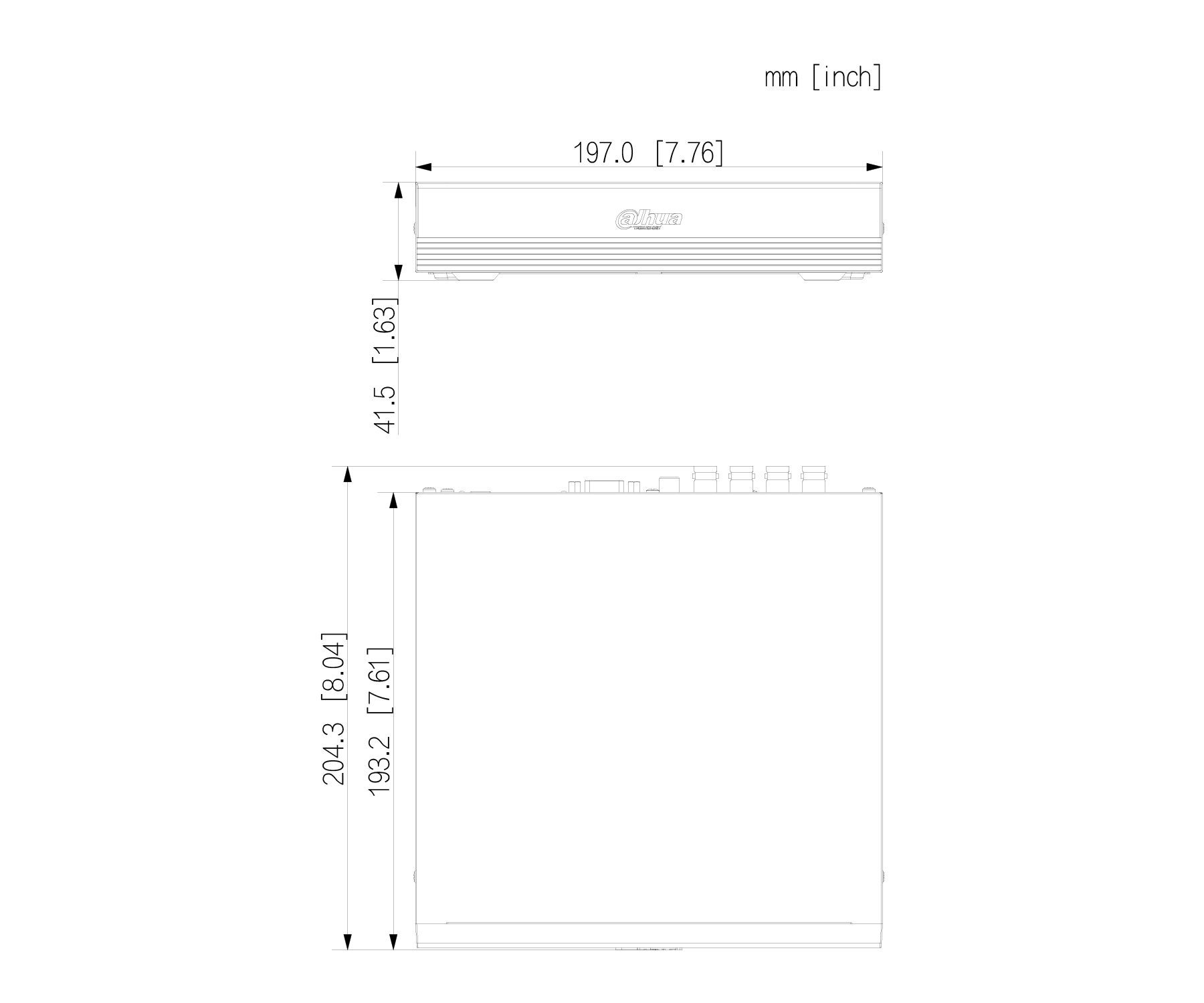

| Dimensions: | 197 x 204 x 42 mm |
| Supported languages: | Polish, English, Bulgarian, Czech, Finnish, Greek, Romanian, Serbian, Slovenian, Hungarian |
| Country of origin: | China |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
