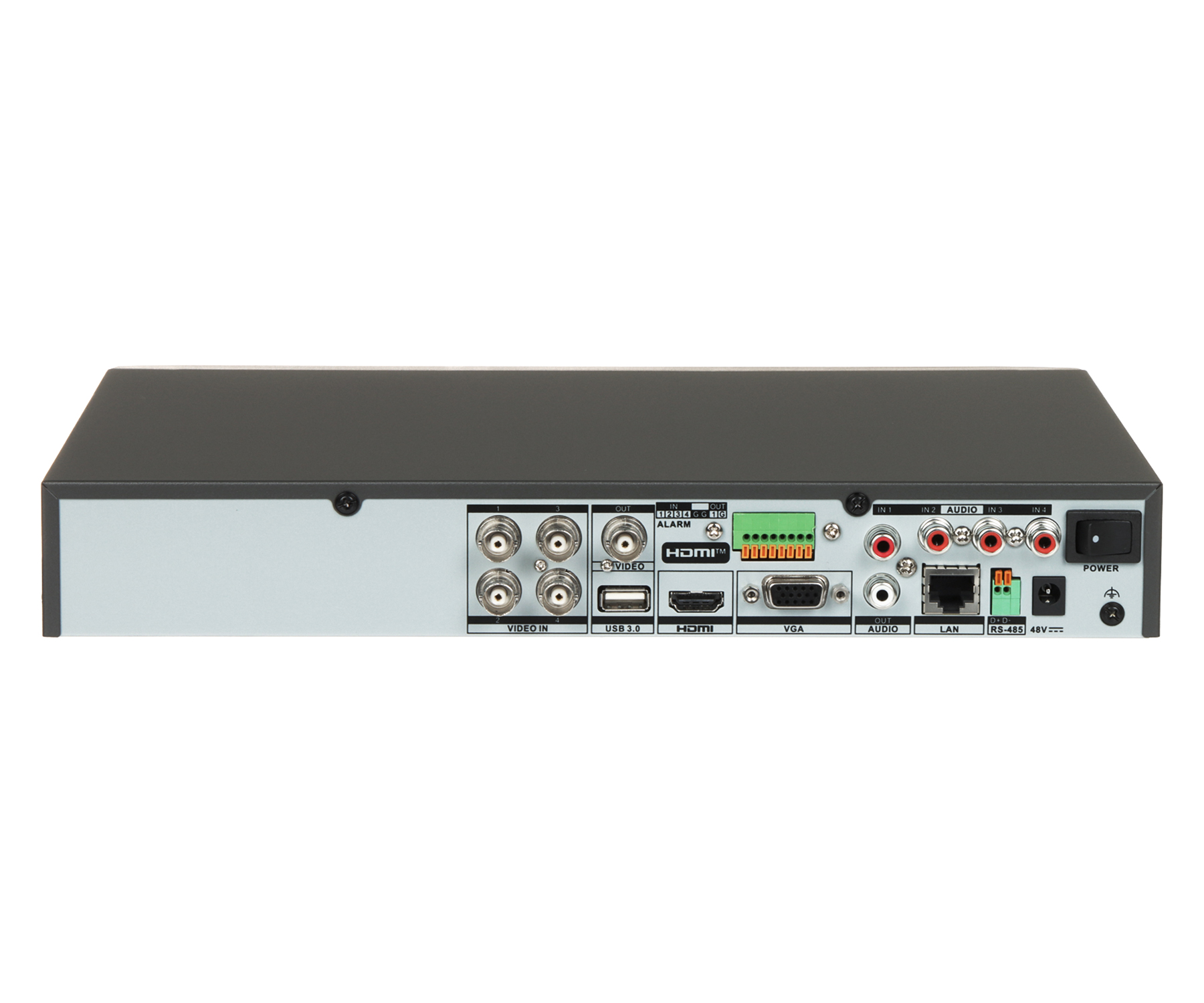

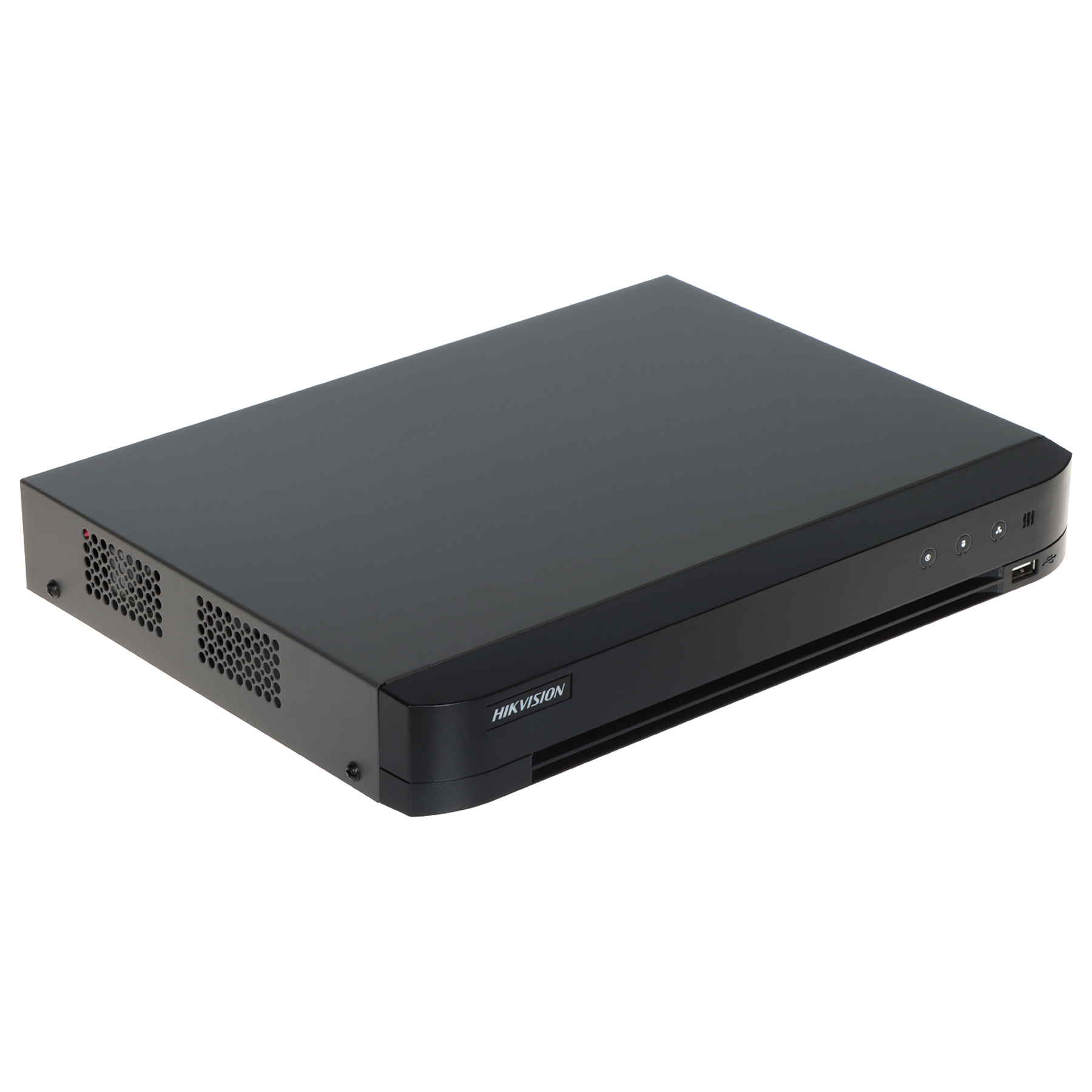

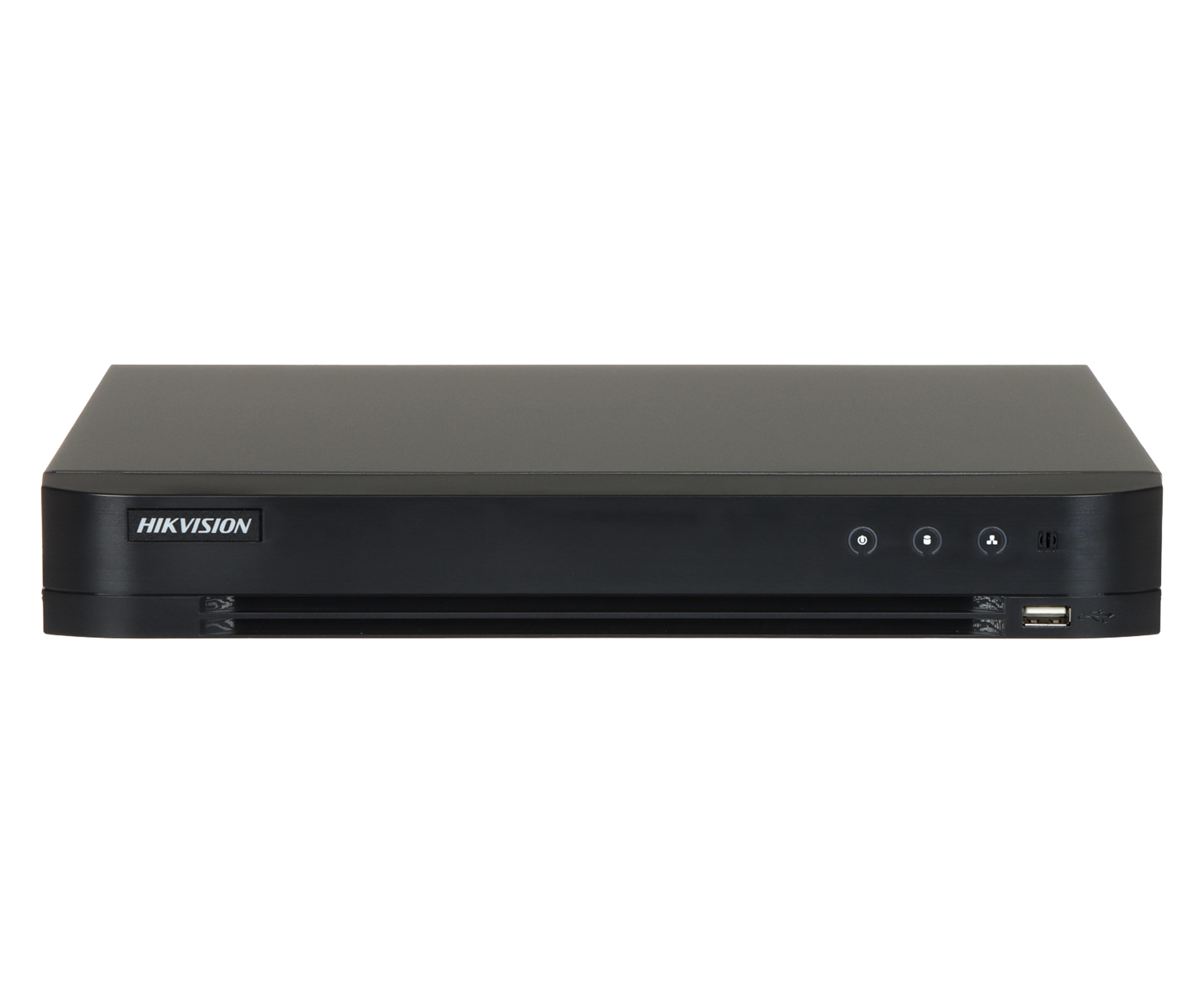

AHD, HD-CVI, HD-TVI, CVBS, IP DVR IDS-7204HUHI-M1/PXT/4A+4/1ALM 4 CHANNELS AcuSense PoC Hikvision
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Audio inputs: 4 pcs CINCH, 4 pcs BNC, Coaxial audio - Audio from cameras ; Image compression method: H.265 Pro+ ; Image records resolutions: HD-TVI / HD-CVI : 8 Mpx - 1 CH only, 8M-N - 2,3,4 CH only, AHD : 5 Mpx, IP : max. 8 Mpx ; Supported hard drives: 1 x 12 TB SATA ; Alarm inputs / outputs: 4 / 1 ; Intelligent Image Analysis;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, IP |
| Video inputs: | 4 pcs BNC |
| Video outputs: | |
| Audio inputs: | |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Image records resolutions: | 8 Mpx - 3840 x 2160 px - 1 CH only , 8M-N - 1920 x 2160 px - 2,3,4 CH only , 5 Mpx - 2560 x 1944 px , 960H - 960 x 576 px , max. 8 Mpx - 3840 x 2160 px |
| Recording speed adjustment: | 8 Mpx IP @ 1 ... 25 fps 8 Mpx @ 1 ... 12 fps 8M-N @ 1 ... 15 fps 5 Mpx (3K) @ 1 ... 20 fps 5 Mpx @ 1 ... 25 fps 4 Mpx @ 1 ... 25 fps 1080p @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 4 x HD-TVI / AHD / HD-CVI / CVBS / IP + 4 x IP |
| Recording modes: | Manual, Sensor, Motion detection, Schedule |
| Supported hard drives: | 1 x 12 TB SATA |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: timeline or file list. Playback: forward, fast, slow. Records playback from max. 4 channels in the same time Smart Search function AcuSearch |
| Network interface: | 1 x RJ-45 - 10/100 Base-TX |
| Network functions: | Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters 32 on-line users ONVIF compliance |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| USB: | 2 pcs USB 2.0 |
| Serial ports: | RS-485 |
| Alarm inputs / outputs: | 4 / 1 |
| PTZ control: | RS-485 PELCO-D/P Control compatible with coax HD-TVI Hikvision |
| Motion Detection: | 2.0 |
| Intelligent Image Analysis: |  |
| Main features: | |
| Mouse support: | |
| IR remote controller in the set: |  |

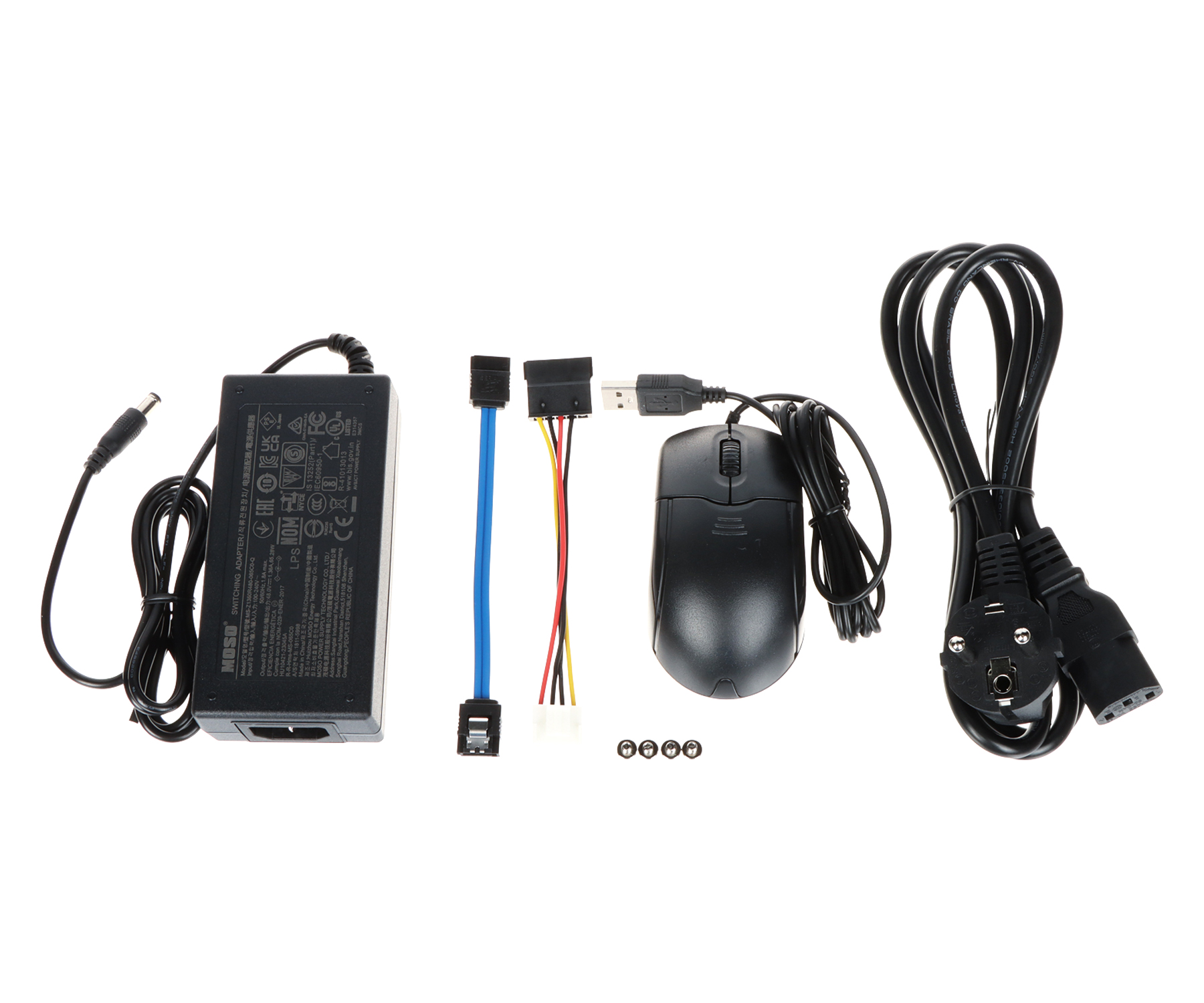

| Power supply: | 48 V DC / 1.36 A (power adapter included) |
| Power consumption: | ≤ 20 W (without HDD) |
| Color: | Black |
| Weight: | 1.25 kg |
| Dimensions: | 315 x 249 x 45 mm |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 300229475 |
| Guarantee: | 3 years |
