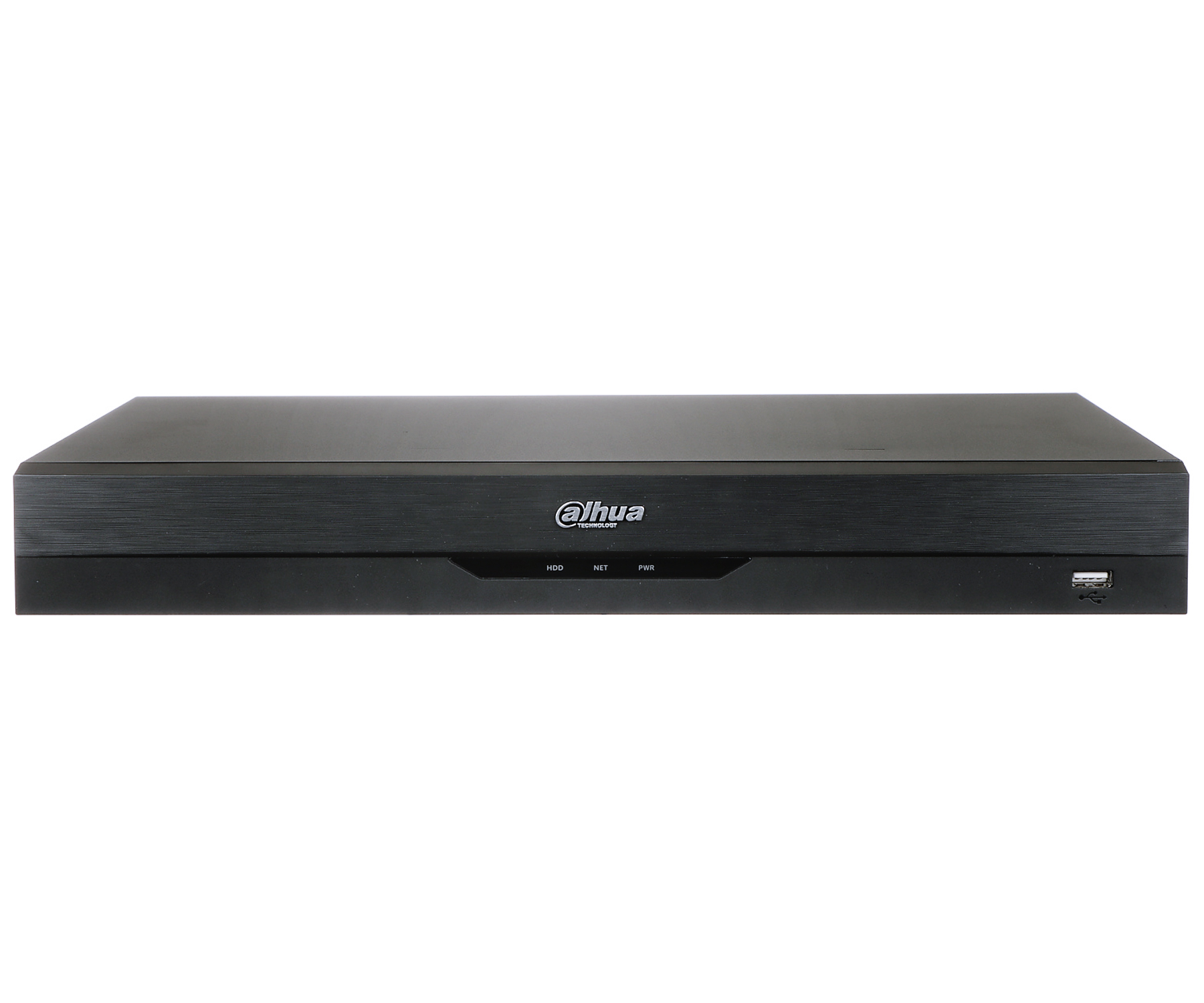

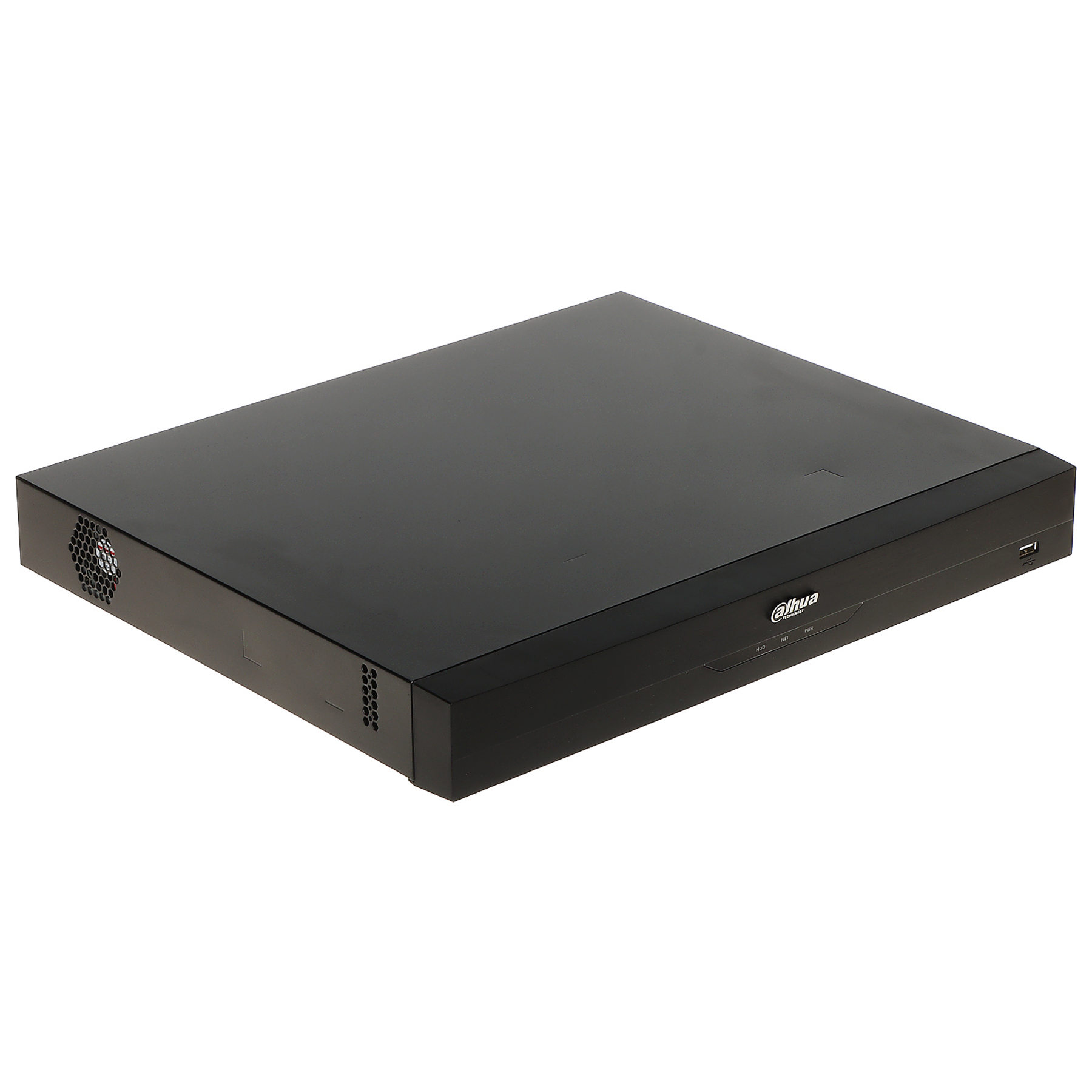

AHD, HD-CVI, HD-TVI, CVBS, IP DVR XVR5232AN-4KL-I3/T 32 CHANNELS DAHUA

€596.32

(Включая налог 21%)

Задать вопрос

КОД: XVR5232AN-4KL-I3/T

Доступность: 9 шт.

Кол-во:

Минимальное количество для товара "AHD, HD-CVI, HD-TVI, CVBS, IP DVR XVR5232AN-4KL-I3/T 32 CHANNELS DAHUA" 1.

Описание
Особенности

Audio inputs: 1 pcs CINCH 32 Channels - Audio support via coaxial cable ; Image compression method: AI Coding / Smart H.265+ ; Image records resolutions: AHD / HD-CVI / HD-TVI : 8 Mpx, IP : max. 8 Mpx ; Supported hard drives: 2 x 16 TB SATA ; Main features: Coax Audio/Alarm support, Intelligent Image Analysis, advanced face and vehicle recognition and search functions ;

Standard:	AHD, HD-CVI, HD-TVI, CVBS, IP

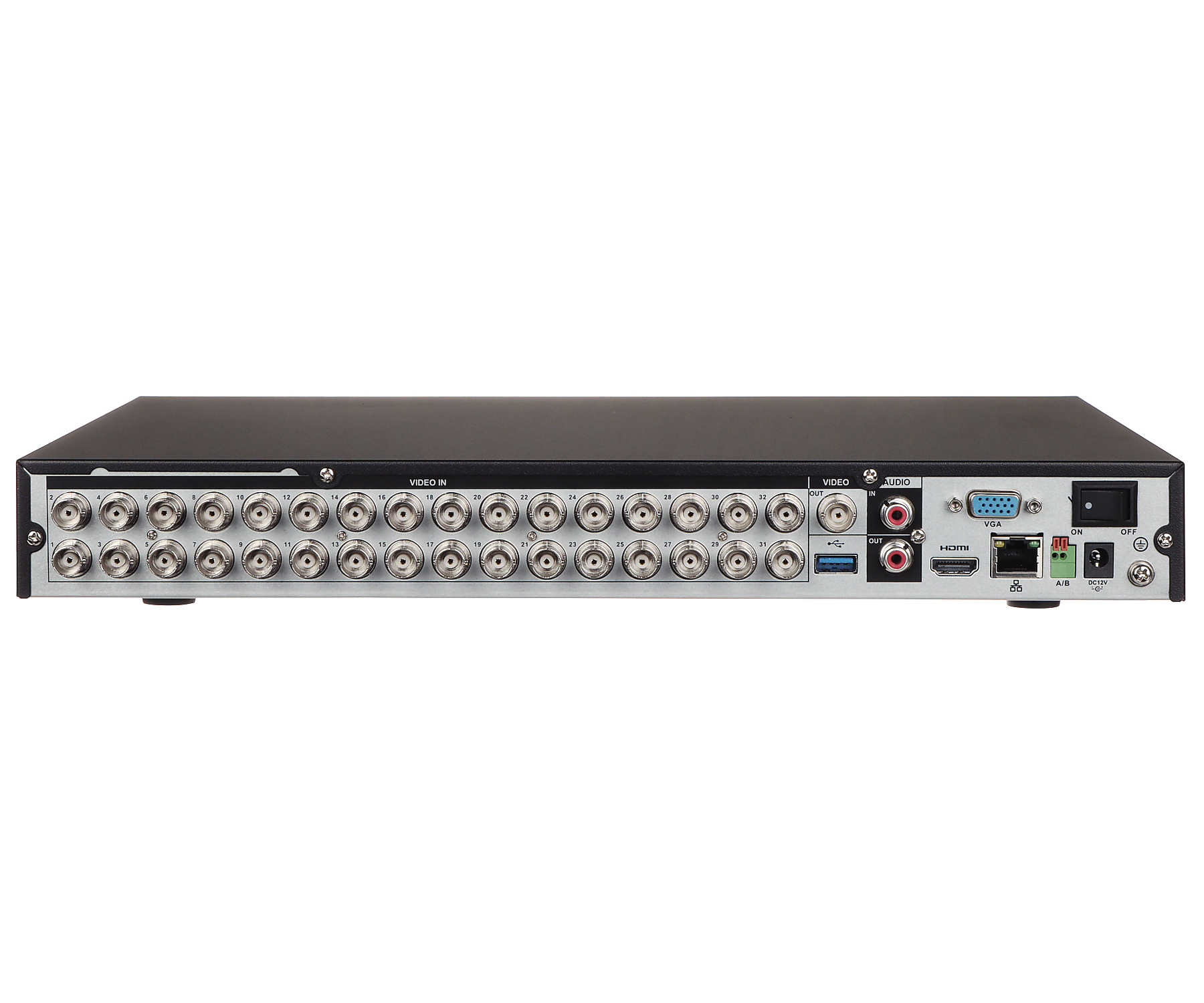

Video inputs:	32 pcs BNC
Video outputs:	1 pcs HDMI 4K (1080p with AI functions turned on) 1 pcs VGA There is a possibility to configure a SPOT function on one of the output
Audio inputs:	1 pcs CINCH , 32 Channels - Audio support via coaxial cable, HD-CVI only
Audio outputs:	1 pcs CINCH
Image compression method:	AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
Image records resolutions:	AHD / HD-CVI / HD-TVI : 8 Mpx - 3840 x 2160 , 4K-N - 1920 x 2160 , 6 Mpx - 2880 x 1920 - HD-CVI only , 5 Mpx - 2592 x 1944 , 4 Mpx - 2560 x 1440 , 4M-N - 1280 x 1440 , 3 Mpx - 2048 x 1536 - AHD / HD-TVI only , 1080p - 1920 x 1080 , 720p - 1280 x 720 CVBS : 960H - 960 x 576 IP : max. 8 Mpx - 3840 x 2160
Operation modes:	32 x AHD / HD-CVI / HD-TVI / CVBS / IP + 32 x IP
Recording modes:	Manual, Motion Detection, Schedule
Supported hard drives:	2 x 16 TB SATA
External storage devices backup:	Save single frames and whole records from DVR drive to the USB drive
Searching and playback the records:	Records searching: by time + timeline with record type. Playback: forward, fast, slow, step Advanced searching (to the one second accuracy) 1/4/8/9/16/25/36 channel synchronous playback
Network functions:	Full support via network, Remote records copying, Web-Server built-in max. 128 on-line users
Mobile phones support:	Port no.: 37777 or access by a cloud (P2P) Android: DMSS free application iOS (iPhone): DMSS free application See how to configure the P2P function in Dahua recorders and how to enable the mobile application
Alarm inputs / outputs:
PTZ control:	IP Speed Dome Cameras Control compatible with coax PTZ HD-CVI RS-485 - PELCO-D/P
Motion Detection:	Split the screen into zones : 22 x 18 motion zones
Main features:	Coax Audio/Alarm support, Intelligent Image Analysis : crossing the line (tripwire), crossing the line (tripwire), classification of people and vehicles, AcuPick support - technology that uses artificial intelligence on both front-end and back-end to search through massive amounts of video data to quickly locate targets with high precision, advanced face and vehicle recognition and search functions Filtering of false alarms based on the recognition of persons and vehicles (tripwire, intrusion) Support for up to 10 face databases, including 10 000 face images Detection of faces not included in the device database Searching for faces in recordings based on max 12 selected photos with the ability to independently set the similarity threshold for each photo SMD PLUS - searching for an object classified as: human, motor vehicle, non-motor vehicle
Mouse support:
IR remote controller in the set:
USB:	1 pcs USB 3.0 1 pcs USB 2.0
Power supply:	12 V DC / 5 A (power adapter included)
Color:	Black
Weight:	2.4 kg
Dimensions:	375 x 334 x 53 mm
Supported languages:	Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
