AHD, HD-CVI, HD-TVI, CVBS, IP DVR APTI-XB1601-S34 16 CHANNELS
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Audio inputs: 2 pcs CINCH ; Image compression method: H.265+ ; Image records resolutions: AHD / HD-CVI / HD-TVI : 5M-N - 1280 x 1952, IP : 4K UHD ; Supported hard drives: 1 x 8 TB SATA ;

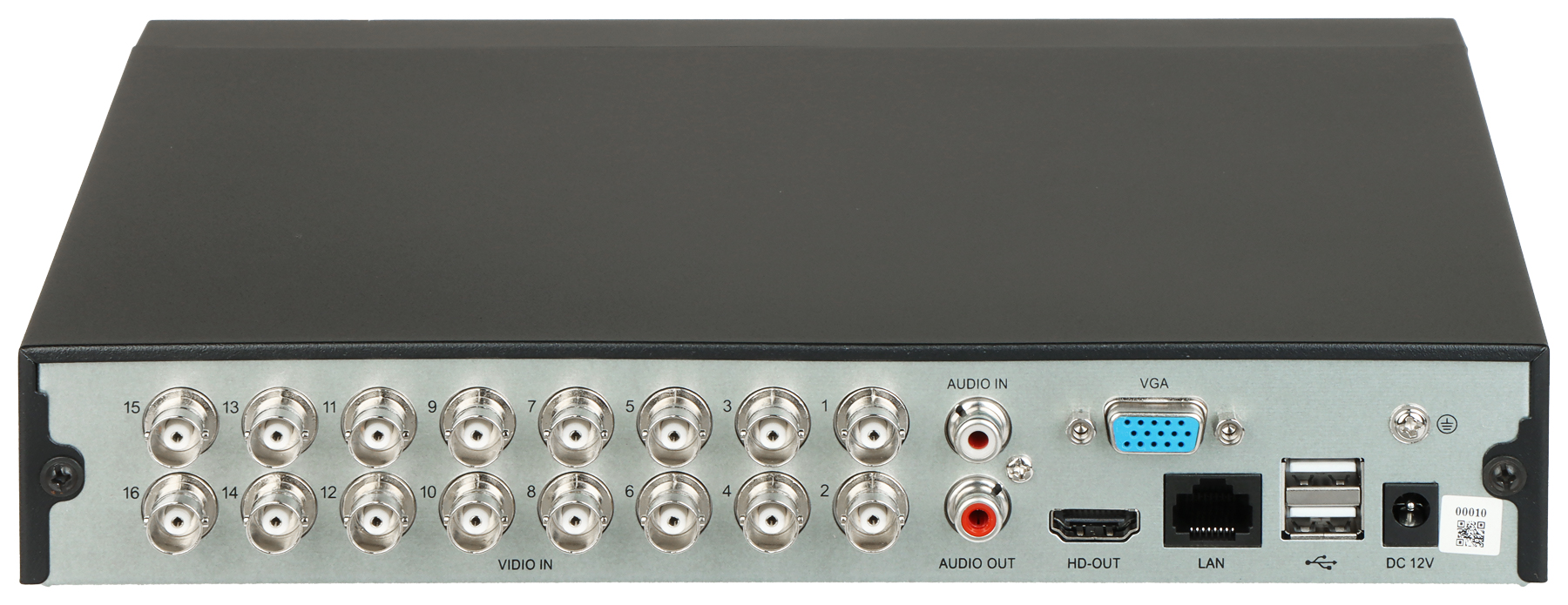

| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Video inputs: | 16 pcs BNC - AHD / HD-CVI / HD-TVI / CVBS |
| Video outputs: | 1 pcs HDMI 1 pcs VGA 1 pcs CVBS output - BNC socket |
| Audio inputs: | 2 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Image records resolutions: | 5M-N - 1280 x 1952, - AHD / HD-TVI only 4M-N - 1280 x 1440 , 1080N - 960 x 1080 , 720p - 1280 x 720 |
| Recording speed adjustment: | 1 ... 25 @ 8.3 Mpx IP 1 ... 6 fps @ 5M-N 1 ... 8 fps @ 4M-N 1 ... 15 fps @ 1080N 1 ... 15 fps @ 720p 1 ... 25 fps @ 960H for each channel |
| Operation modes: | 16 x AHD / HD-CVI / HD-TVI / IP All modes allow for any combination of the AHD, HD-CVI, HD-TVI, CVBS cameras The recorder allows you to connect analog / IP cameras only in pairs |
| Recording modes: | Motion Detection, Schedule |
| Supported hard drives: | 1 x 8 TB SATA |
| External storage devices backup: | Records backup at (.avi) format to USB (pendrive) |
| Searching and playback the records: | Records searching: timeline or file list. Playback: forward, backward, fast, slow. Records playback from max. 16 channels in the same time |
| Network functions: | |
| Mobile phones support: | Port no.: 6000 or access by a cloud (P2P) |
| Default IP address: | 192.168.1.88 |
| Default admin user / password: | admin / 12345 |
| Web browser access ports: | 80, 5000, 554 |
| PC client access ports: | 80, 5000, 554 |
| Mobile client access ports: | 80, 5000, 6000 |
| Alarm inputs / outputs: |  |
| PTZ control: | RS-485 - PELCO-D/P |
| Motion Detection: | Split the screen into zones : 22 x 18 motion zones |
| USB: | 3 pcs USB 2.0 |
| Mouse support: |  |
| IR remote controller in the set: | |
| Power supply: | 12 V DC / 2 A (power adapter included) |
| Color: | Black |
| Weight: | 0.81 kg |
| Dimensions: | 260 x 243 x 45 mm |
| Supported languages: | Polish, English, Bulgarian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Hungarian, Italian |
| Country of origin: | China |
| Manufacturer / Brand: | APTI |
| Guarantee: | 2 years |
