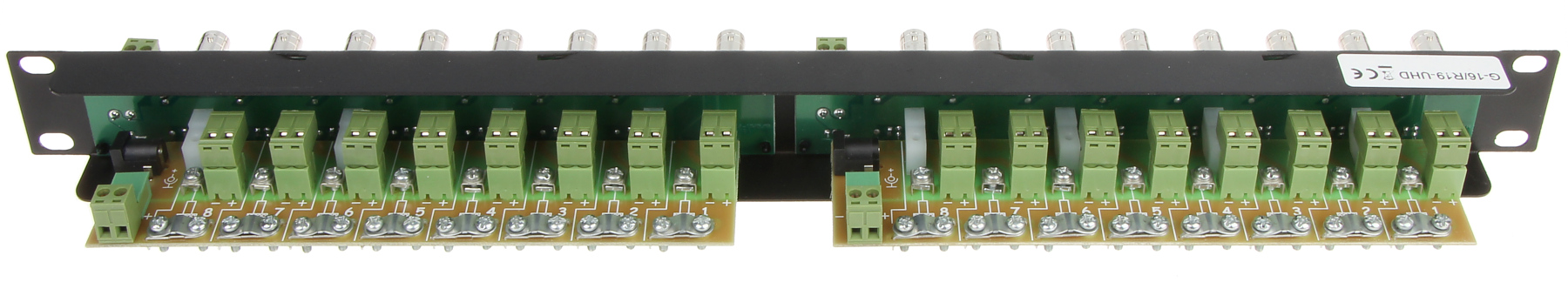

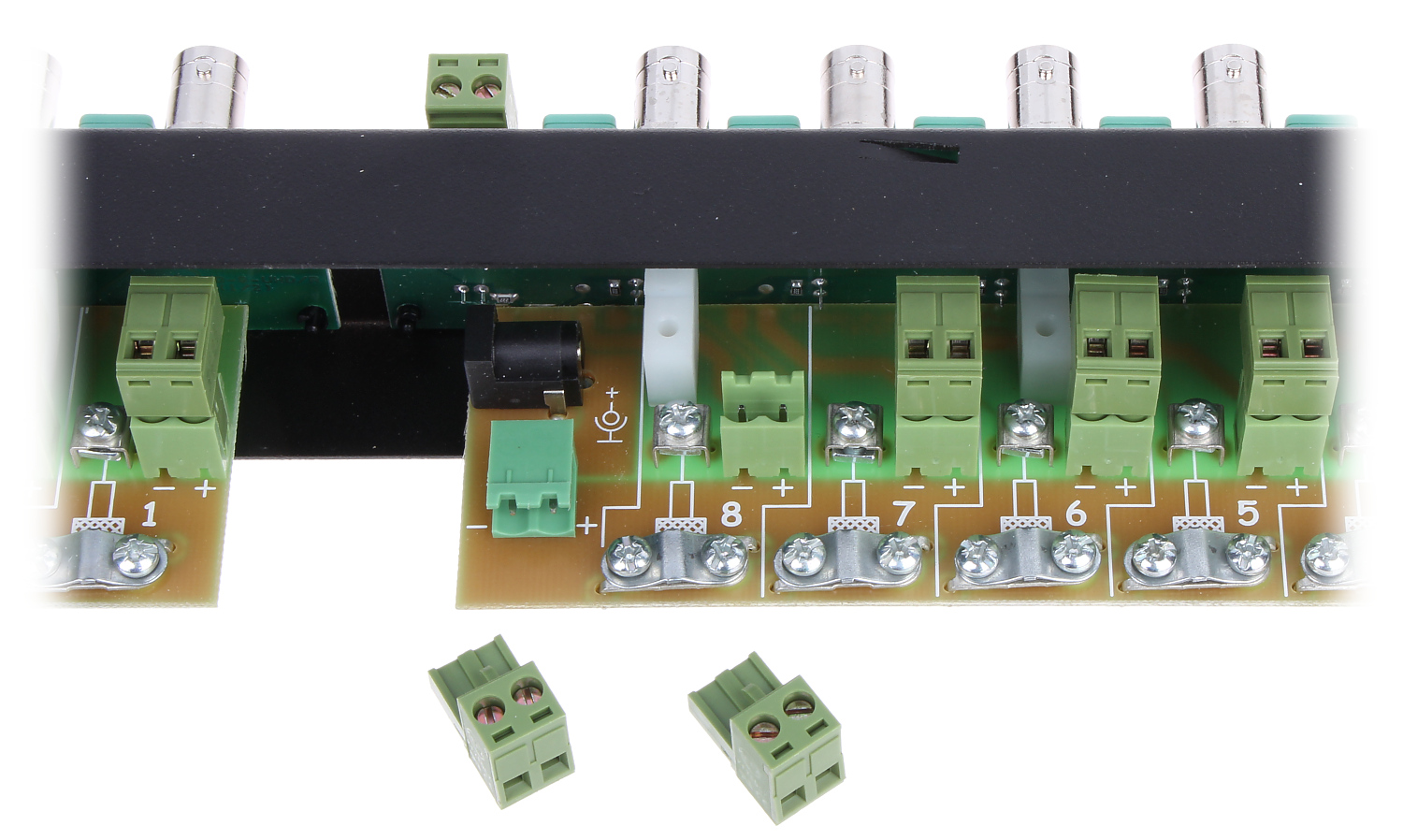

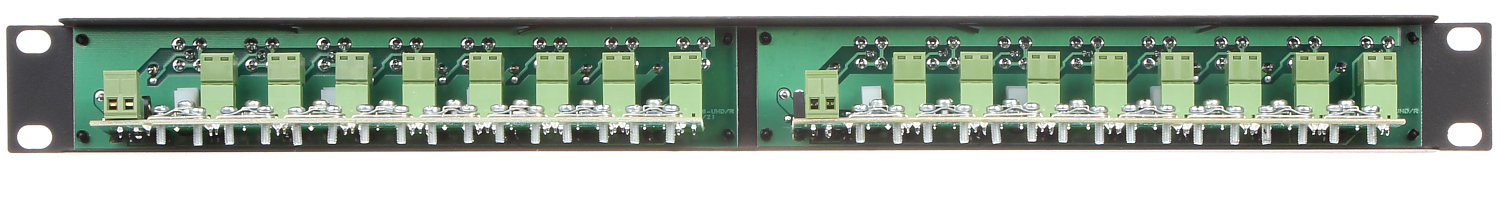

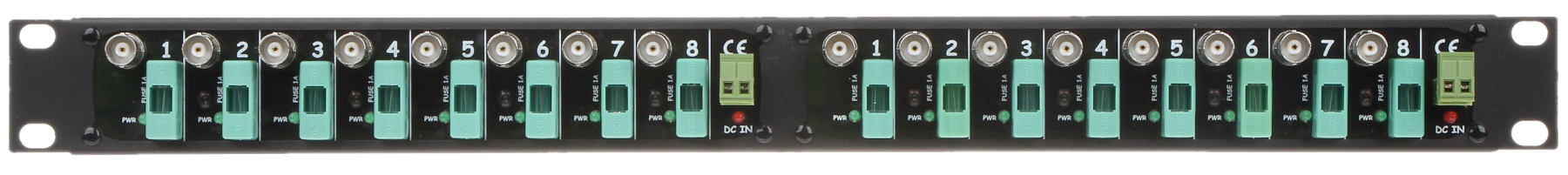

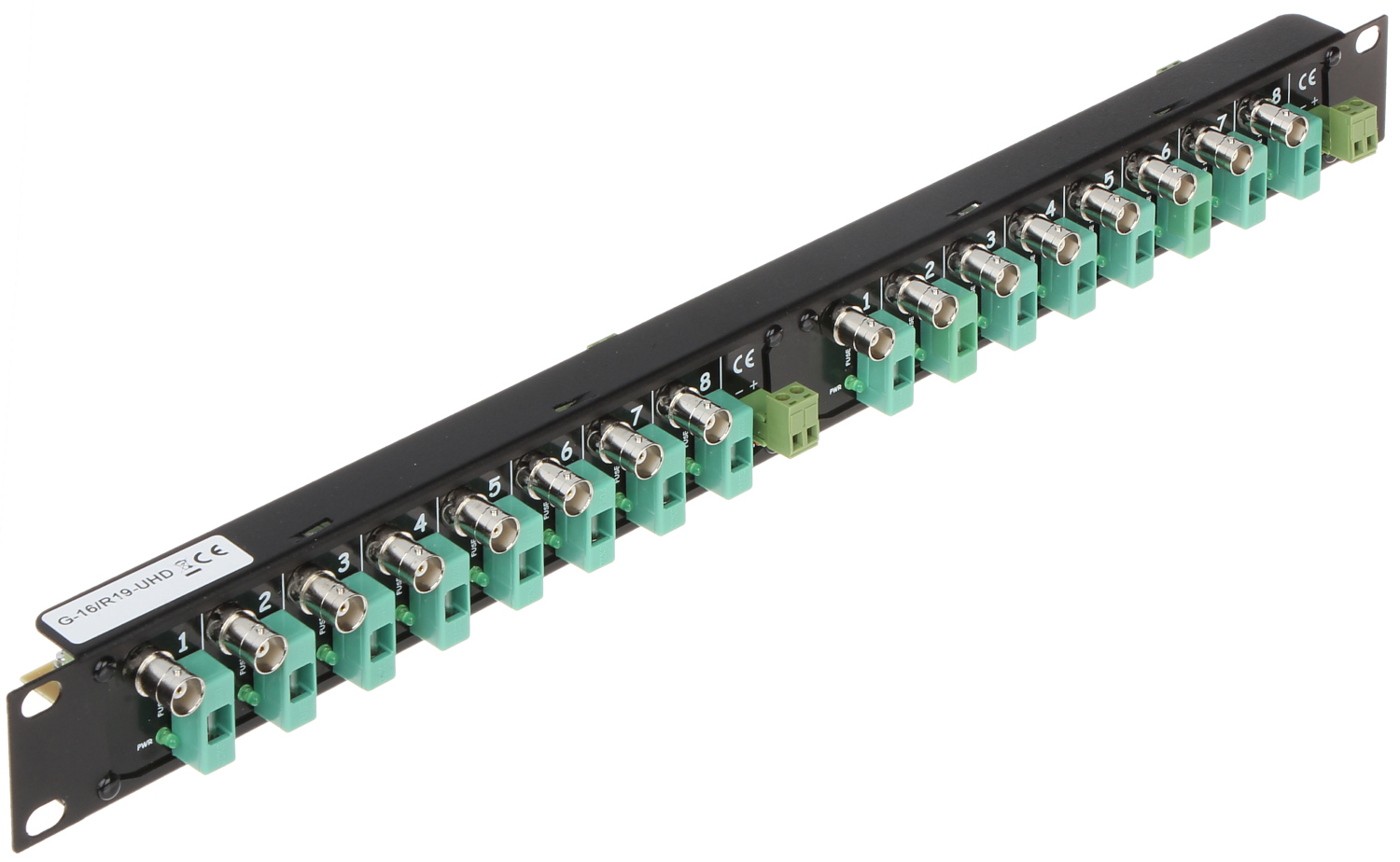

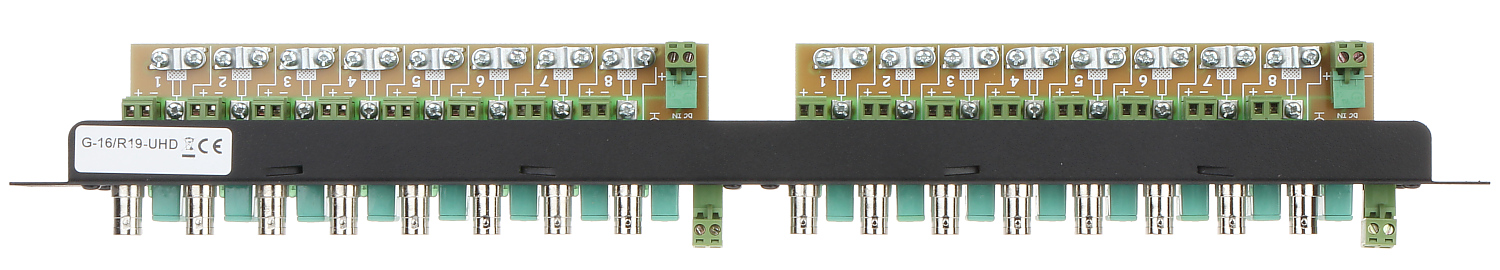

VIDEO DISTRIBUTOR G-16/R19-UHD
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Standard: AHD - 8 Mpx 4K UHD, HD-CVI - 8 Mpx, HD-TVI - 8 Mpx ; Number of video outputs: 16 pcs BNC socket ; Number of power outputs: 16 pcs ; Maximal power supply current: 2 x 8 A ;
| Standard: | |
| Number of video outputs: | 16 pcs BNC socket |
| Number of video inputs: | 16 pcs screw terminals |
| Number of power outputs: | 16 pcs Cable terminals |
| Number of power inputs: | |
| Maximal power supply current: | 2 x 8 A |
| Maximal current for single output: | 1 A |
| Type of fuses: | 1A/250V, 5/20mm, delayed |
| Power supply: | 3 ... 30 V DC (typical 12V) |
| LEDs application: | |
| Assembly: | RACK 19", 1U |
| Housing: | Metal |
| Color: | Black |
| Operation temp. / Relative humidity: | -40 °C ... 55 °C / < 95 % |
| Weight: | 0.55 kg |
| Dimensions: | 483 x 44 x 70 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 5 years |
Brand:
Delta
