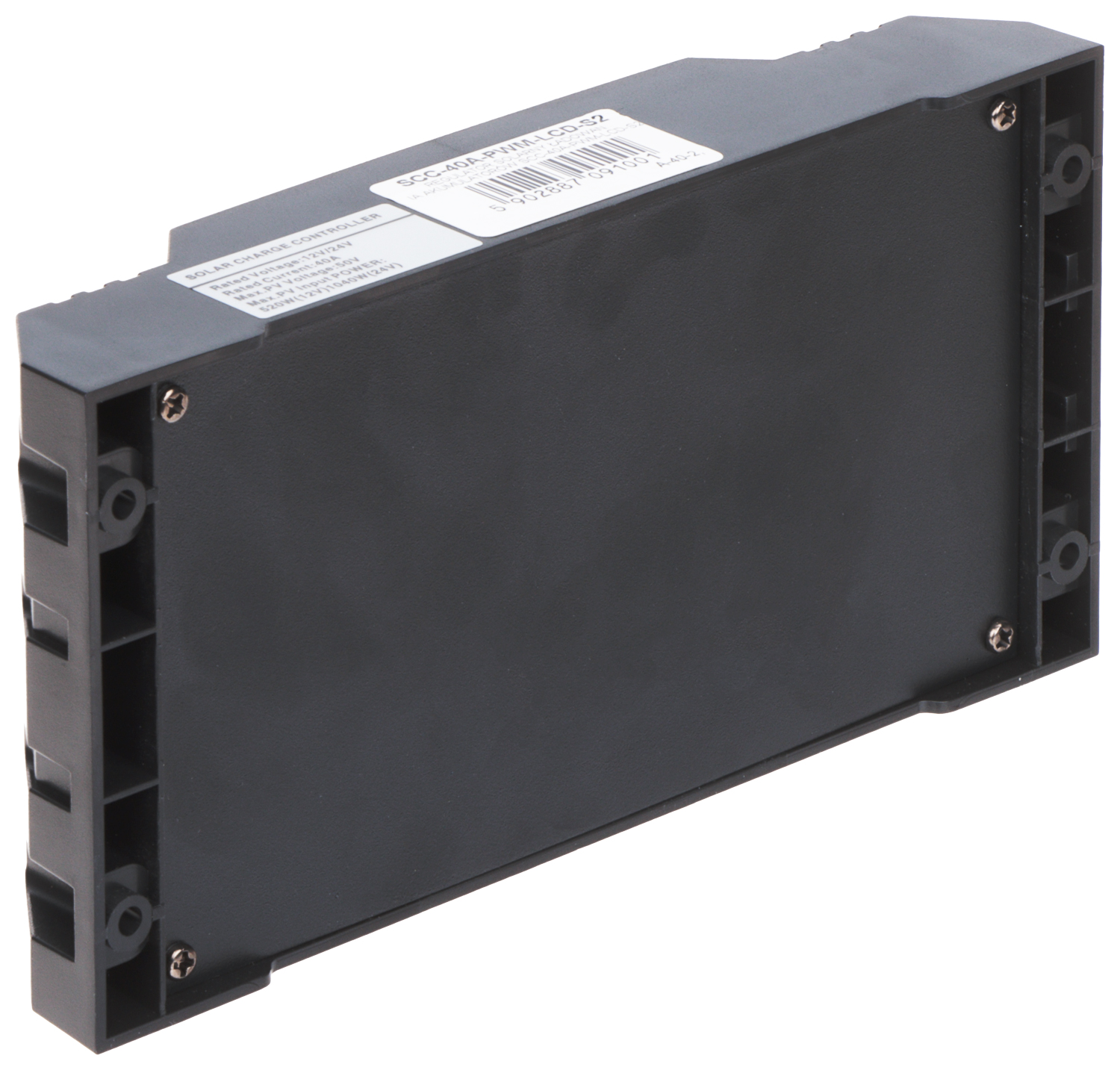

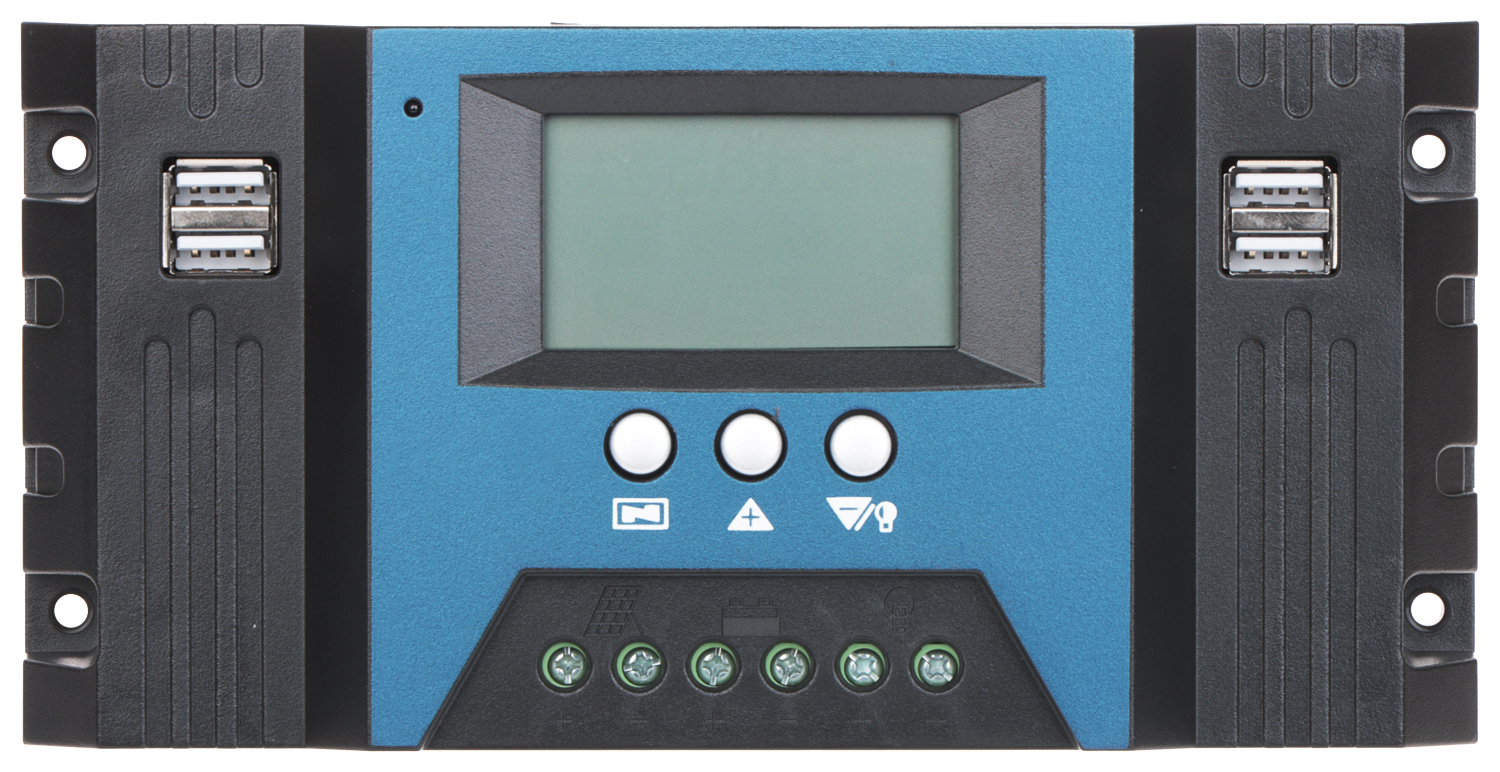

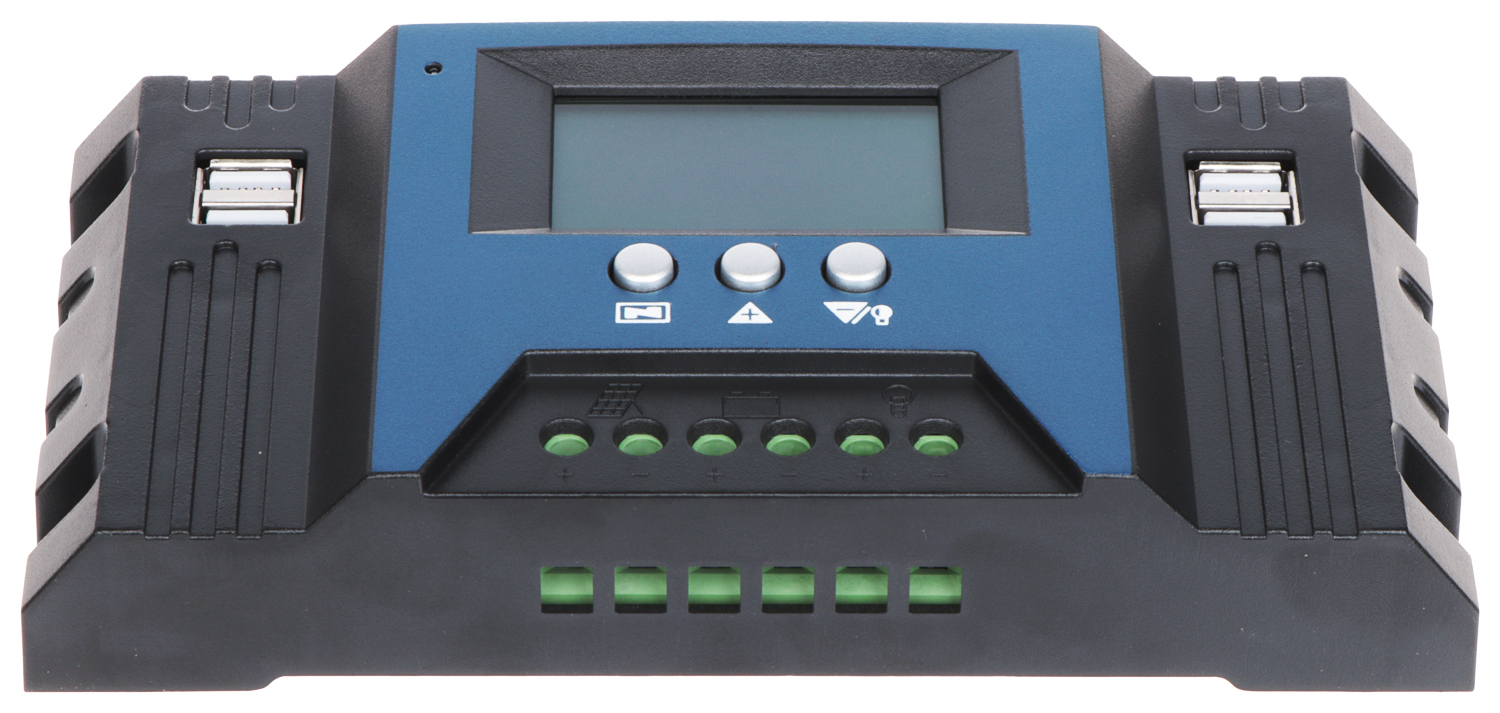

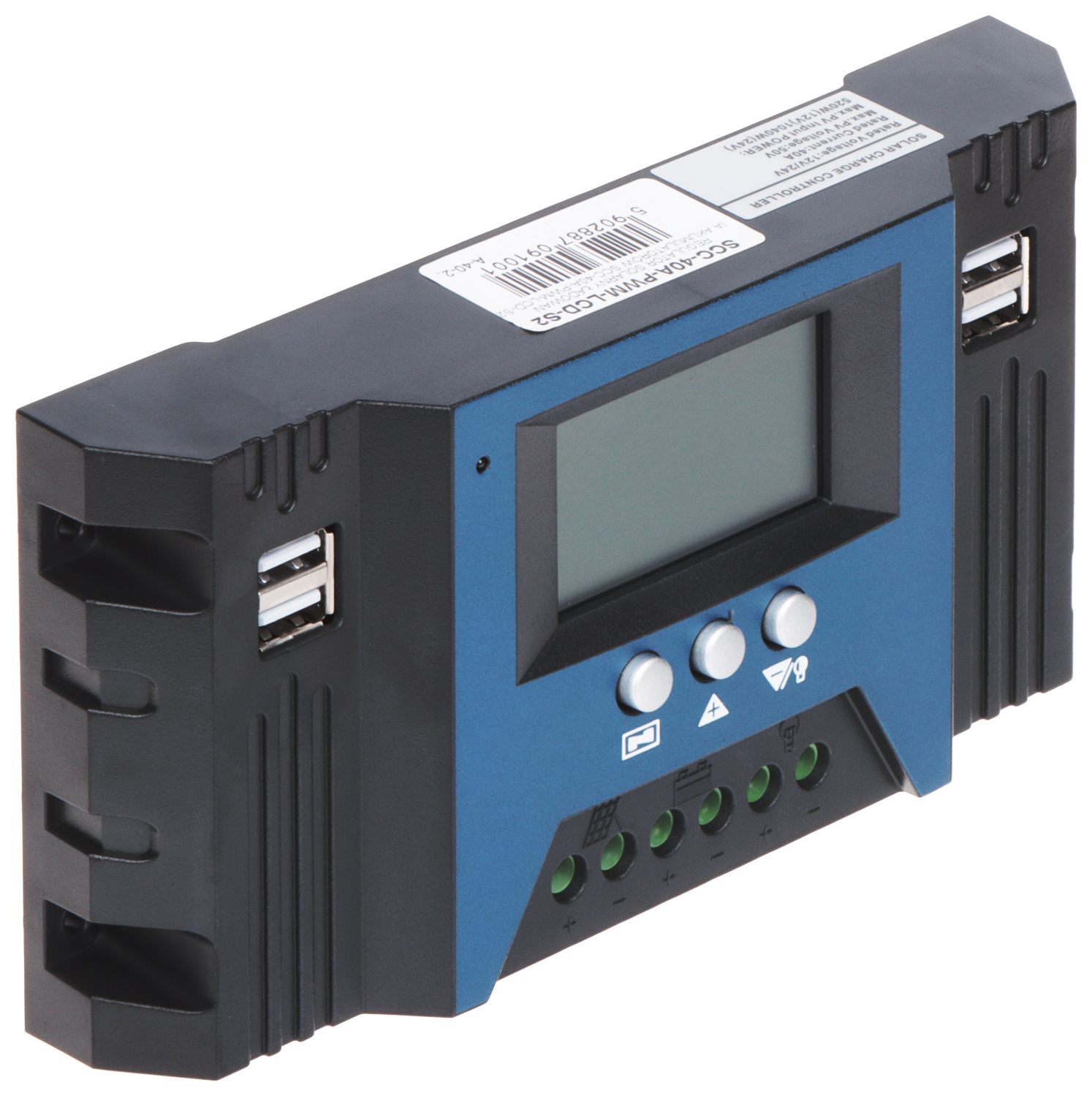

SOLAR CHARGE CONTROLLER SCC-40A-PWM-LCD-S2
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Regulation Type: PWM ; Rated voltage: 12 / 24 V ; Rated current: 40 A ; Weight: 0.28 kg ;
| Regulation Type: | PWM |
| Rated voltage: | 12 / 24 V |
| Rated current: | 40 A |
| Permitted voltage range: | max. 23 V for 12 V battery - The range of the highest operating voltage of a set of panels connected to one input of the controller max. 46 V for 24 V battery - The range of the highest operating voltage of a set of panels connected to one input of the controller |
| Battery charging current: | max. 40 A |
| Load Current: | max. 20 A |
| Output voltage: | |
| Main features: | |
| Weight: | 0.28 kg |
| Dimensions: | 190 x 94 x 37 mm |
| Guarantee: | 2 years |
Brand:
Delta Power
