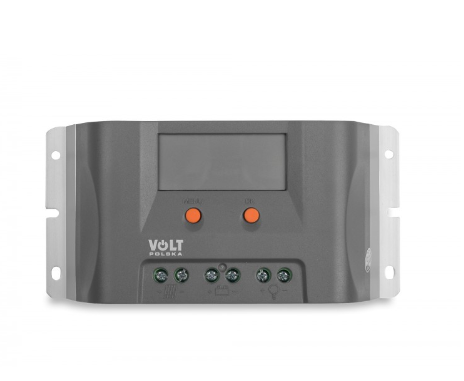

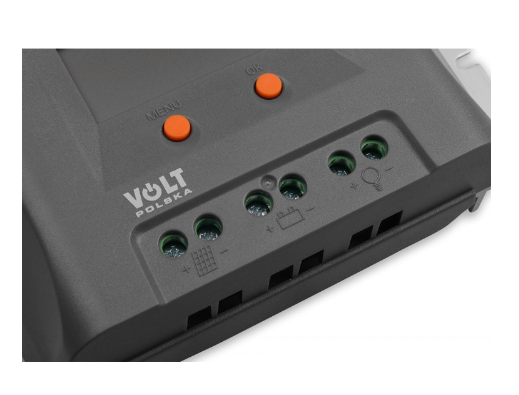

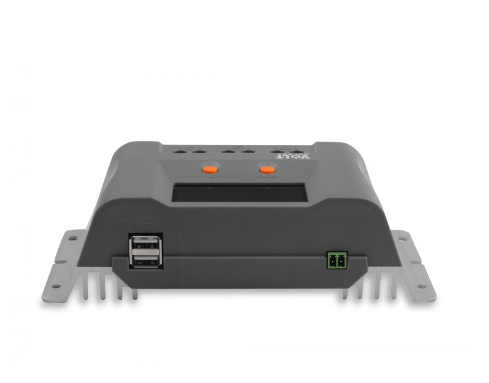

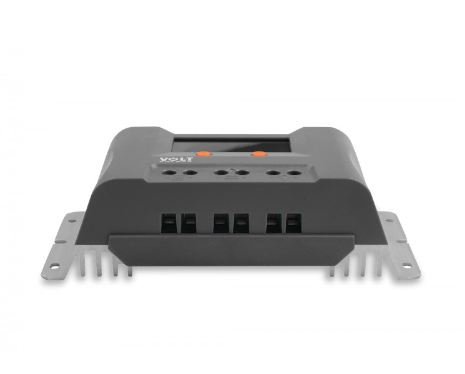

SOL MPPT 10A СОЛНЕЧНЫЙ РЕГУЛЯТОР
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
• Max charging current: 10A • Battery voltage: 12V • Maximum voltage from panels: 50V • Own power consumption: 7mA • For batteries: AGM, GEL, Liquid, Lithium • MPPT charging voltage: <14.5 (at 25 ° C) • BOOST voltage: 14.5 (at 25 ° C) • Equalization voltage: 14.8 (at 25 ° C) • Float Voltage: 13.7 (at 25 ° C) • Disconnection of loads at low voltage: 10.8 ~ 11.8V SOC1 ~ 5 • Reconnect voltage: 11.6 ~ 12.8V • Overcharge protection: 15.5 • Temperature compression: -4.17mV / K per cell (Boost, Equalization) -3.33mV / K per cell (Float) • Dusk / dawn detection voltage: 5 / 10V • Dimensions: 189 x 96 x 53mm • Weight: 420g • Protection: IP32
